| Power Source: | Electric | Housing Material: | Stainless steel |
|---|---|---|---|
| Model Number: | FW-12 | Heating capacity: | 44kw |
| Refrigerant: | R410A | Heat source: | Ground Souce/ water source |
| COP: | 4.5 | Compressor: | Scroll |
| High Light: | |||
| Name: Geothermal heat pump/Water to water heat pump(Heating and hot water) | ||||
| Model | Unit | FW-12 | ||
| Unit function | Rated heating capacity | kw | 45 | |
| BTU | 153584 | |||
| Hot water supply | T/h | 0.93 | ||
| Rated input power | kw | 9.24 | ||
| Rated heaing input current | A | 18.48 | ||
| COP | 4.97 | |||
| Max running current | A | 32 | ||
| Power | V/Ph/Hz | 380-415V/50Hz/60HZ | ||
| Noise | dB(A) | 42 | ||
| Dimension | Width | mm | 880 | |
| Deepth | mm | 650 | ||
| Height | mm | 820 | ||
| Weight | kg | 210 | ||

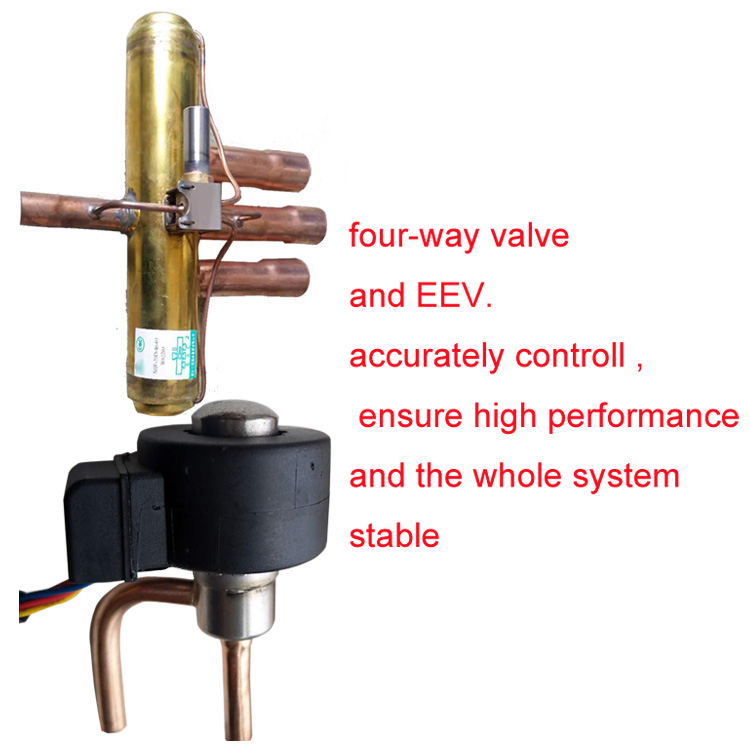

| Throttle typ | Electronic expansion valves | |||
| Refrigerate | R410A,R32 | |||
| Max outlet water temp | 60℃ | |||

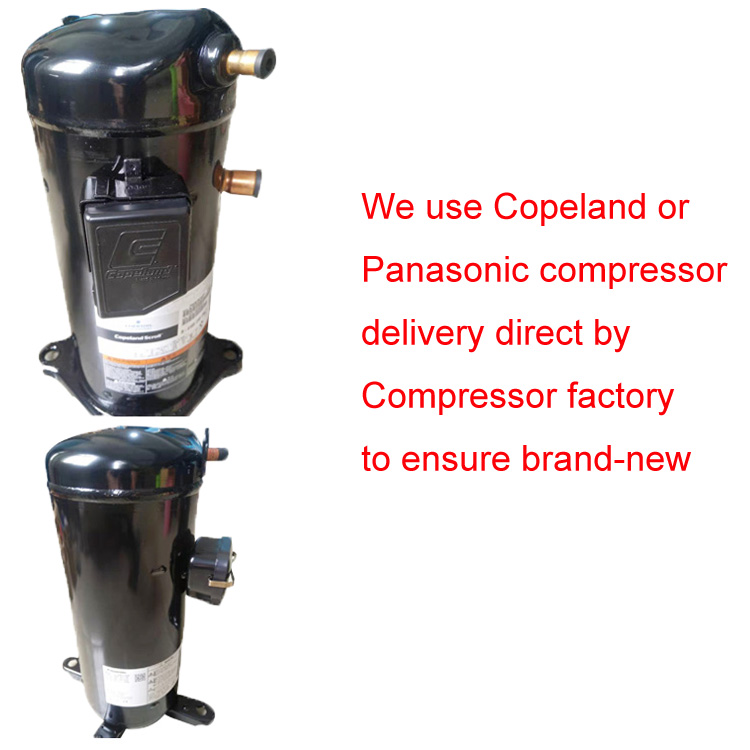

| Circulation structure | Compressor | Type | panasonic ,Sanyo, Copeland,,Scroll | |
| Qty | 2 | |||
| Locked-rotor current | A | 65 | ||
| Security protect functions | Built-in protection device overheating protection, sequence protection, undervoltage protection, delay protect | |||
| Water source side heat exchange | Type | plate heat exchange | ||
| Water flow | m3/h | 7 | ||
| Water pressure down | kPa | 18 | ||
| Pipe size | Inch | .1.5 | ||
| Hot water side heat exchange | Type | plate heat exchange | ||
| Water flow | m3/h | 6.2 | ||
| Water pressure down | kPa | 18 | ||
| Pipe size | DN | 1.5 | ||
| Circulate water pump | NO | |||

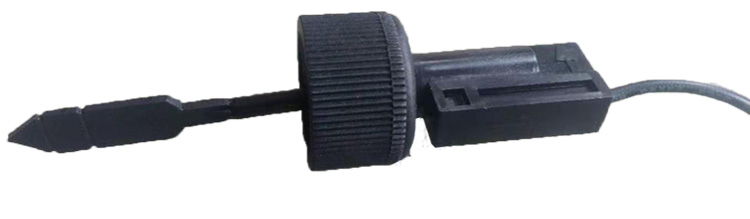

| Water flow switch | YES | |||

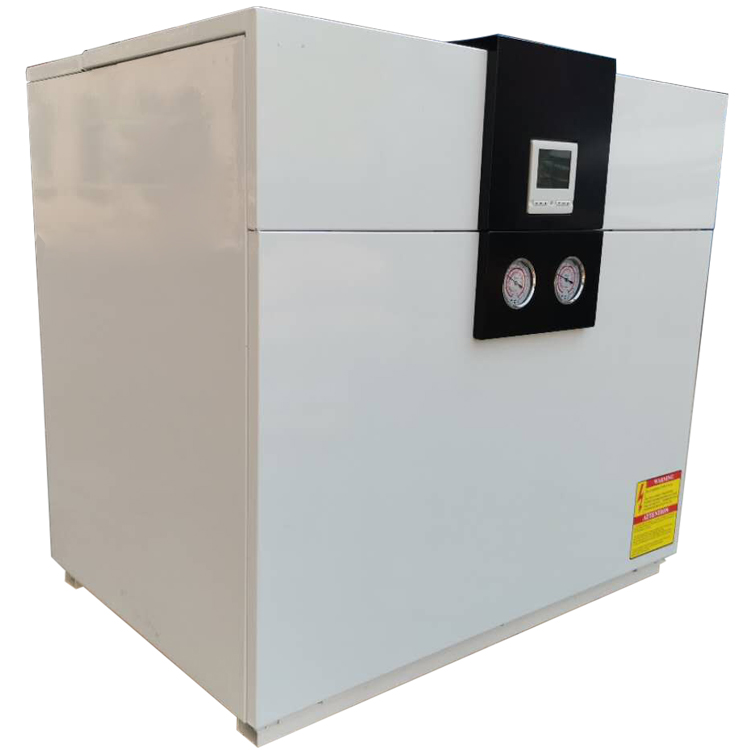

44KW Geothermal heat pump/Water to water heat pump hot water and heating and cooling water source heat pump with wifi controller

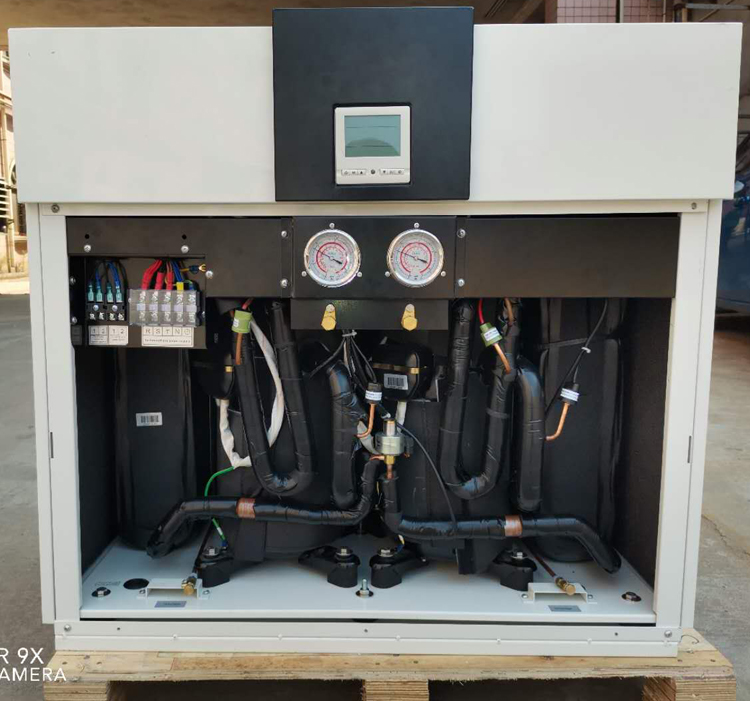

two compressors
1. New design, new visible screws outside. 2. Heating and hot water

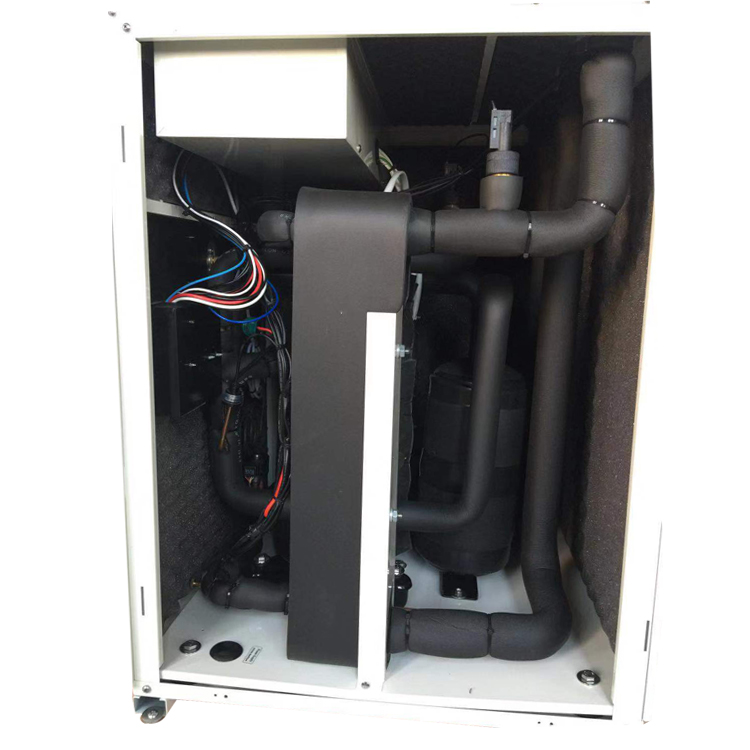

3. Allcasing panels are easy to remove for maintenance.

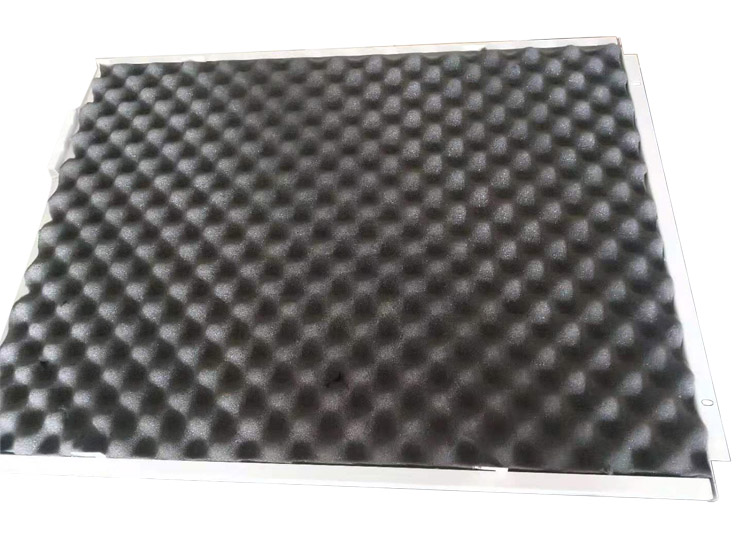

4. Low noise design, the compressor system is isolated from bottom plate with soft rubber mounts.
5. Nose jacket for compressor.
6. Pinvalve is easily accessible for maintenance.
7. With water flow switch.
8. With drain pipes for heat exchangers.

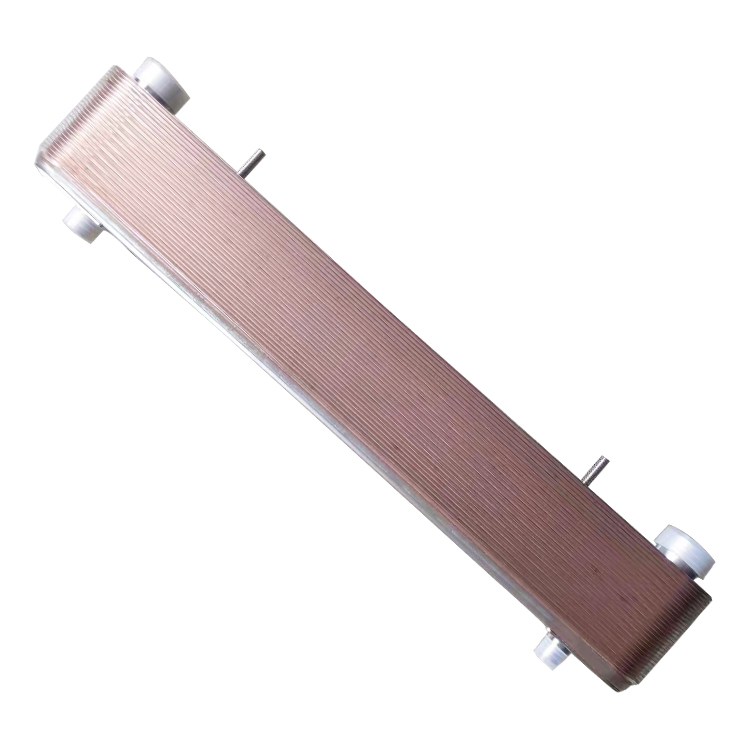

9. plate heat exchangers for heating and hot water units.
10. Can work with room thermostat, master controller, or smart grill signal.
11. We offer OEM/ODM service.

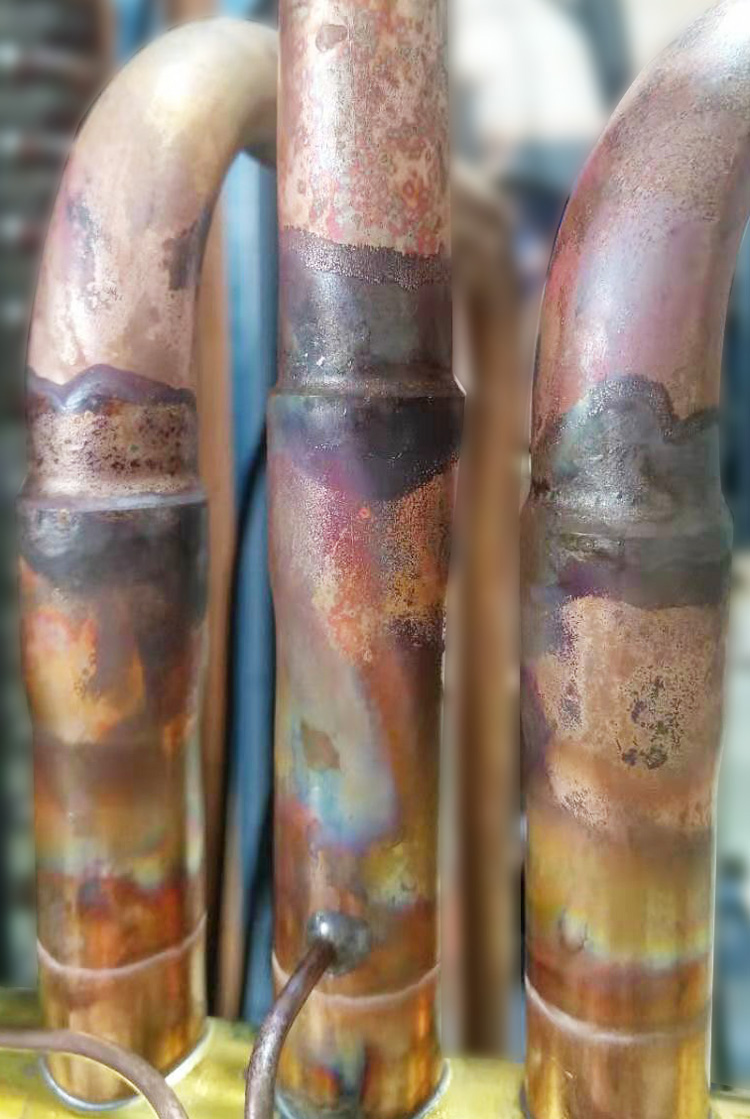

Good welding technique to ensure not eay leaking
