Product Details:
Payment & Shipping Terms:
|
| Power Source: | Electric | Application: | Outdoor, Hotel, Commercial, Household |
|---|---|---|---|

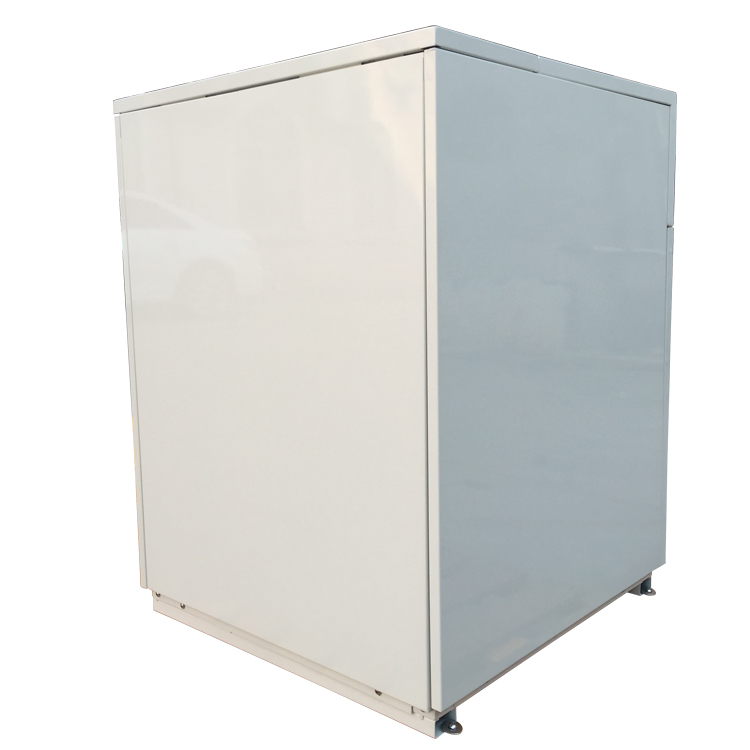

| Housing Material: | powder coating metal or stainless steel metal | Model Number: | FWC-08 |
| max outlet water temp: | max outlet water temp | Refrigeration: | R410A/R417A/ R407C |
| Throttle type: | External equalizer thermal expansion valve | ||
| High Light: | |||
| Model | Unit | FWC-08 | |||
| Rated heating | Heating capacity | kw | 28 | ||
| BTU/h | 86836 | ||||
| Input power | kw | 6.8 | |||
| Input current | A | 11 | |||
| COP | kw/kw | 4.2 | |||
| Rated cooling | Rated cooling capacity | kw | 24.0 | ||
| BTU/h | 76998 | ||||
| Rated input power | kw | 4.8 | |||
| Rated input current | A | 24 | |||
| EER | kw/kw | 4.8 | |||
| max outlet water temp | 60degree | ||||
| Max running current | A | 40 | |||
| Power source | V/Hz | 380-415V/50Hz/60HZ | |||
| Nosie level | dB(A) | 41 | |||
| Dimension | w*d*h | mm | 890*660*880 | ||
| Weight | kg | 196 | |||
| Precision of temp controll | ±2 | ||||
| Refrigeration circulation structure | Throttle type | External equalizer thermal expansion valve | |||
| Refrigeration | Type | R410A/R417A/ R407C | |||

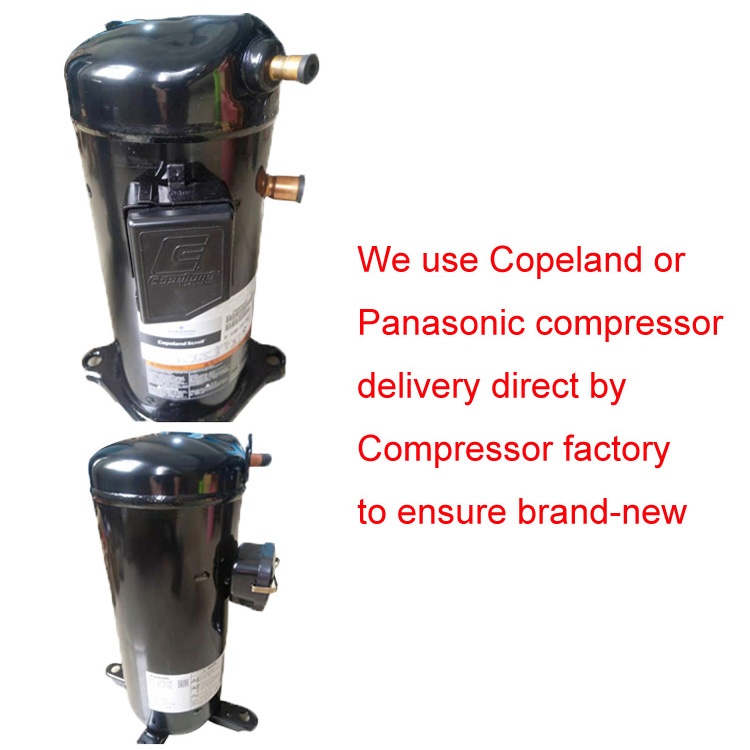

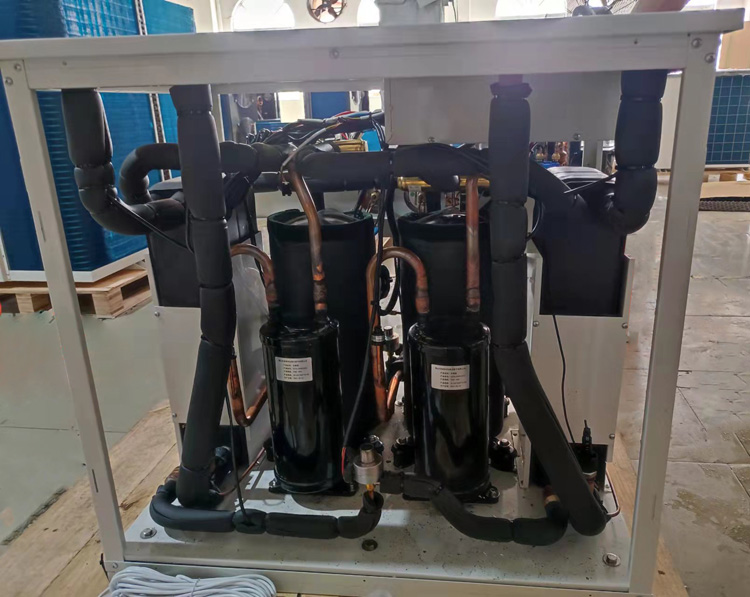

| Compressor | Type | Copeland,Sanyo,panasonic | |||
| Qty | Piece | 2 | |||
| Water source side heat exchange | Type | plate heat exchanger | |||
| Water flow | m3/h | 4.2 | |||
| Water pressure drop | kPa | 14 | |||
| Pipe size | Inch | 1-1/4 | |||
| Water side max working pressure | kPa | 1000 | |||
| Water chiller heat exchanger | Type | plate heat exchanger/tube in shell heat exchanger | |||
| Water flow | m3/h | 4 | |||
| water pressure drop | kPa | 14 | |||
| Pipe size | Inch | 1-1/4 | |||
| Water side max working pressure | kPa | 1000 | |||
| Refrigeration system | Too high gas temperature protection,high pressure protection, low pressure protection, sensor fault protection | ||||
| Compressor delay start protection, phase sequence protection, smoke and fire protection | |||||
| Water source system | Water temperature protection, water flow protection, heat exchanger antifreeze protection, standby low temperature protection,Leakage protection | ||||
| Circulate water pump | No | ||||

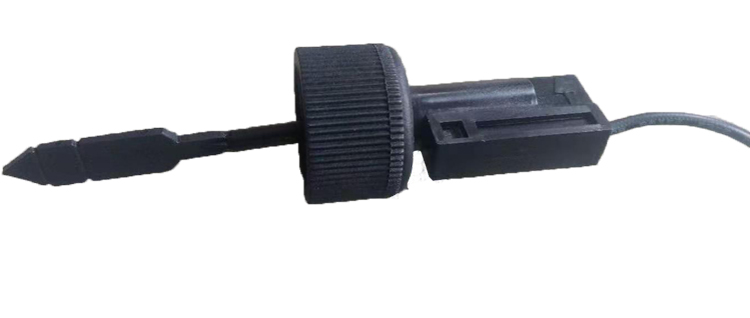

| water flow switch | YES | ||||

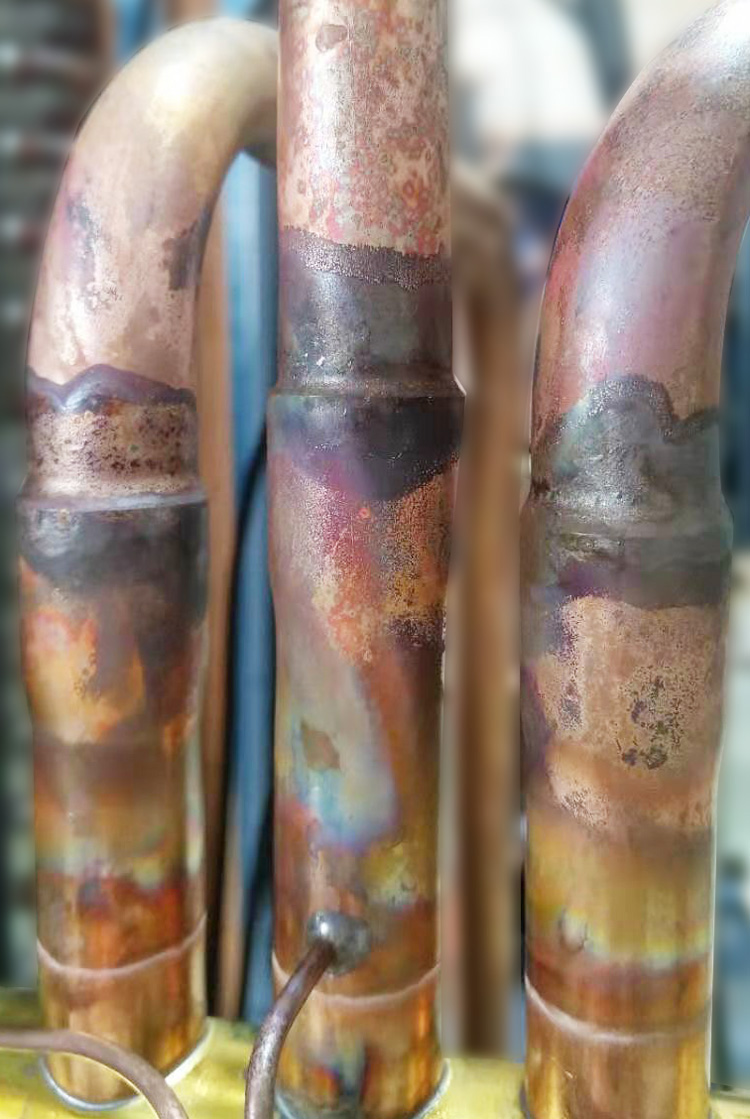

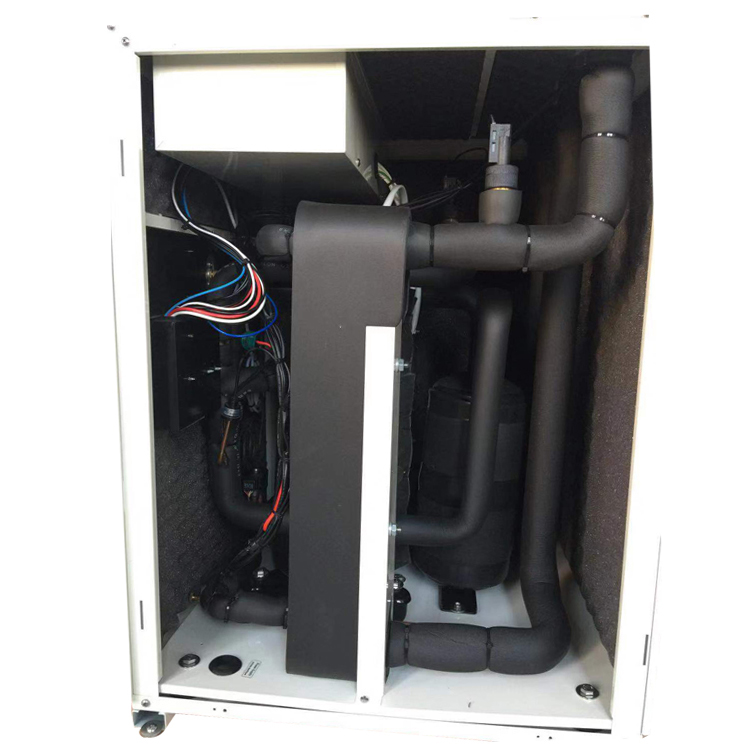

Good welding technique to ensure not eay leaking
