Product Details:
Payment & Shipping Terms:
|
| After-sales Service Provided: | Free spare parts | Warranty: | 2 years |
|---|---|---|---|
| Application: | Outdoor, Hotel, Garage, Household | Housing Material: | powder coating metal or stainless steel metal |

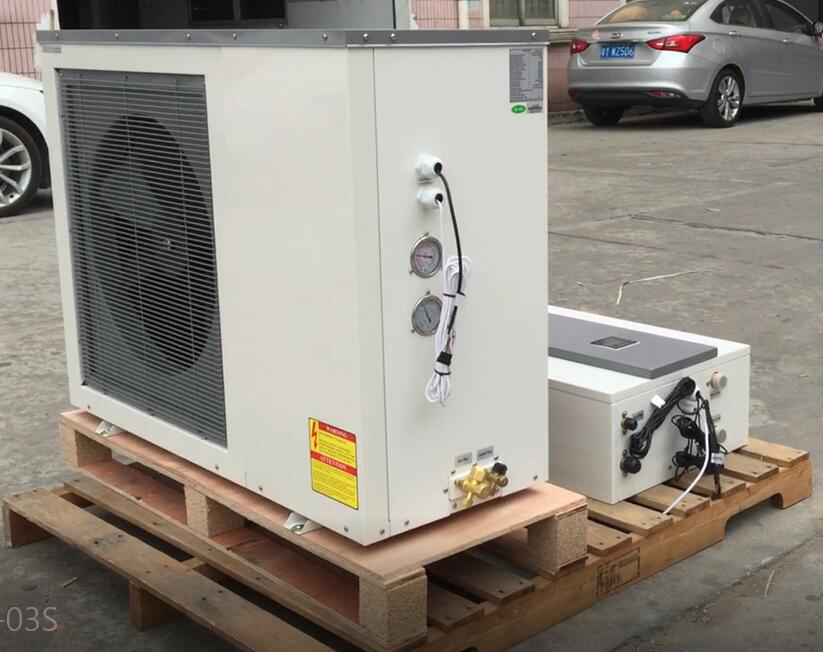

| Model Number: | FAD-035S(12KW) | Function: | House Heating Cooling Hot Water |
| Use: | commercial use and Domestic use | ||
| High Light: | |||
Remark
1,Working temp.:-25℃- 43℃
2,Test condition:
* Ambient temp.:7℃/6℃,inlet/ outlet water temp.:30℃/35℃;
** Ambient temp.:-2℃/-1℃,inlet/ outlet water temp.:30℃/35℃;
*** Ambient temp.:-15℃,inlet/ outlet water temp.:30℃/35℃;
| Model | FAD-035S | ||
| Technical parameters | Heating capacity* | KW | 12 |
| Heating power input* | KW | 2.58 | |
| Heating capacity** | KW | 8.8 | |
| Heating power input** | KW | 2.63 | |
| Heating capacity*** | KW | 7.8 | |
| Heating power | KW | 2.68 | |
| COP* | 4.65 | ||
| COP** | 3.35 | ||
| COP*** | 2.9 | ||
| Cooling capacity | KW | 8.8 | |
| Cooling power input | KW | 2.75 | |
| EER | 3.28 | ||
| Max. water temp. | ℃ | 60 | |
| Rated water temp. | ℃ | 55 | |
| Water flow | m3/h | 1.9 | |
| Pressure drop | Kpa | 24 | |
| Net weight | kg | 96 | |
| TechnicalParameters | |||
| Gross weight | kg | 110 | |
| Noise | dB(A) | 48 | |
| Pipe connection | mm | DN25 | |
| Power supply | 220~240V/1PH/50Hz | ||
| Net size | mm | 1110*450*850 | |
| Package size | mm | 1200*520*990 | |

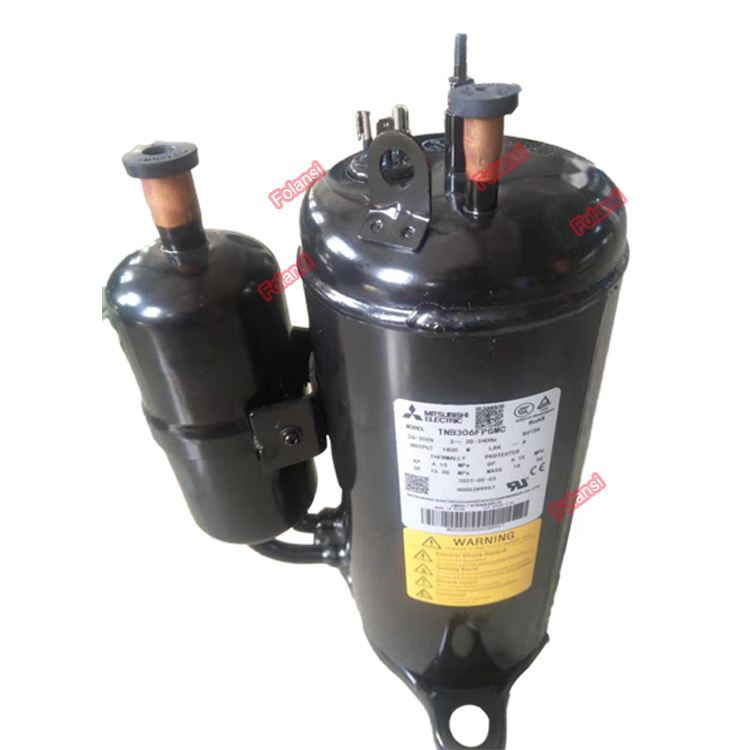

| Standard features | Compressor | Brand | Mitsubishi |
| Quantity | 1 | ||

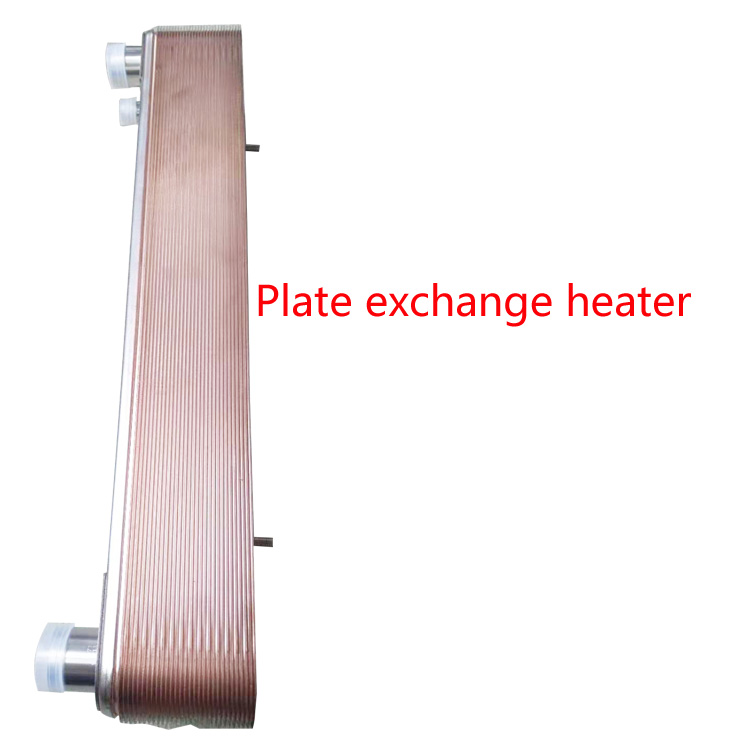

| Condenser | plate heat exchanger | ||
| Evaporator | Fin heat exchanger | ||

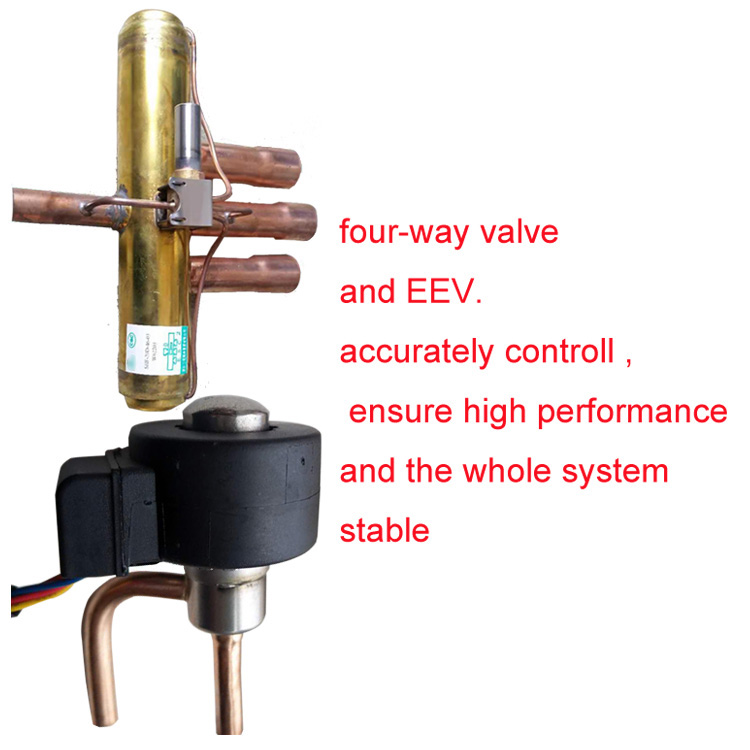

| 4-way valve | Dunan | ||
| Flow switch | Yes | ||

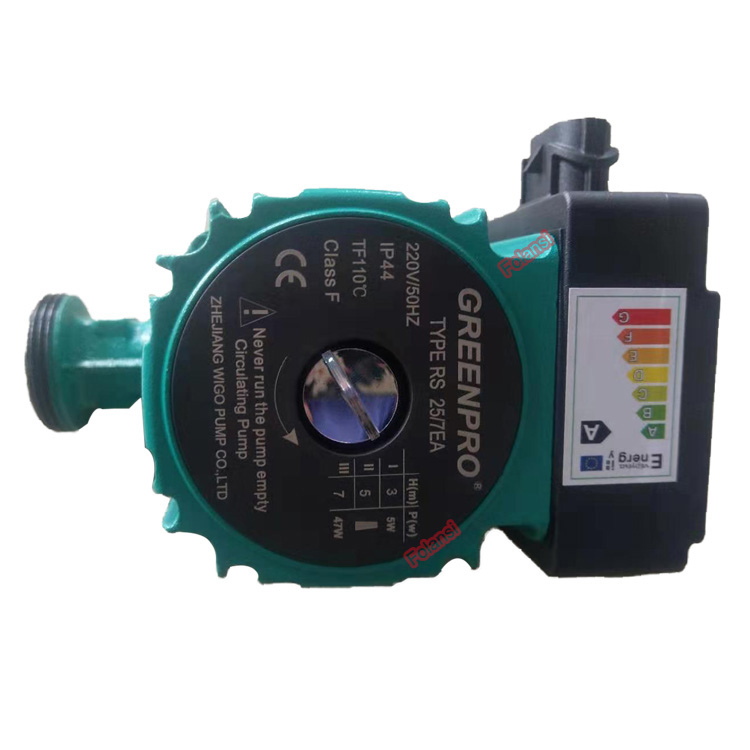

| Circulation pump | GreenPro high efficiency | ||
| Expansion valve | Sanhua or Dunan | ||

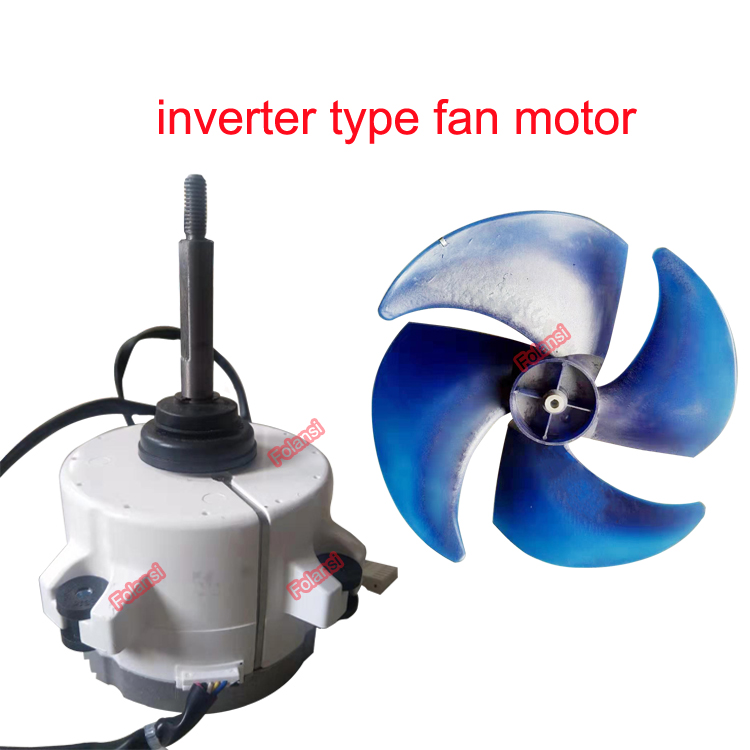

| Fan motor | 90W | ||

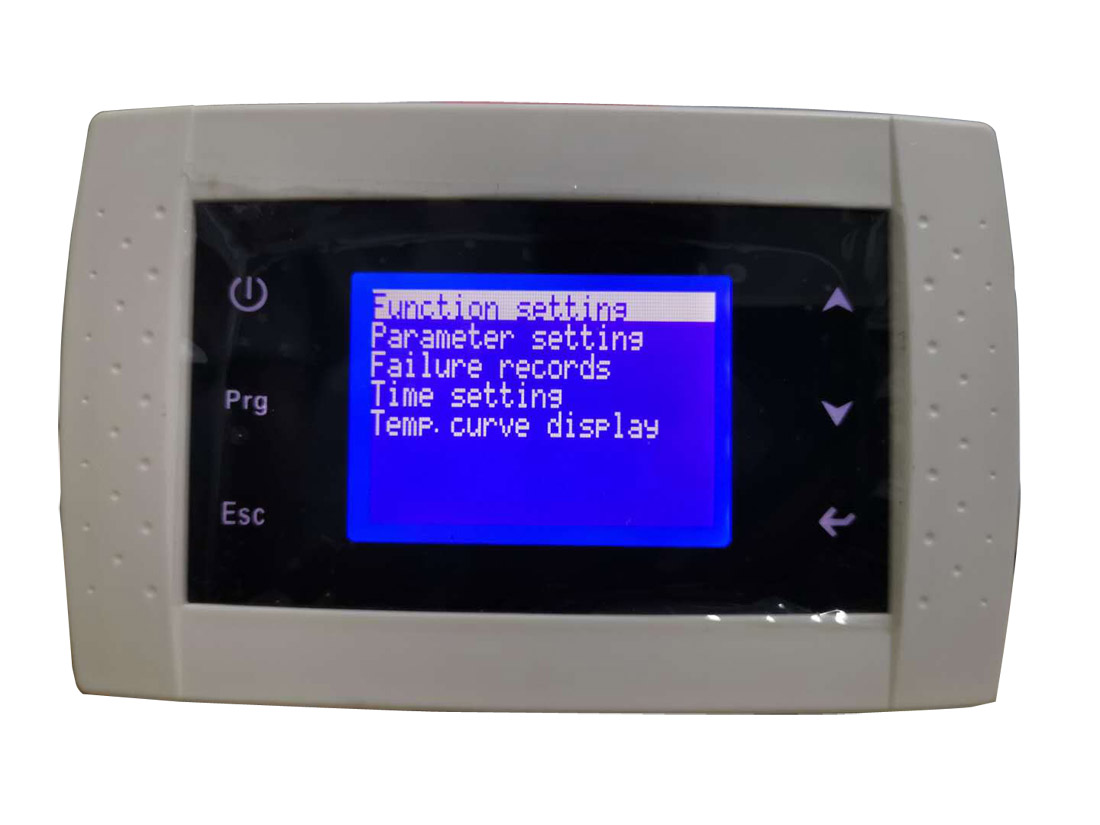

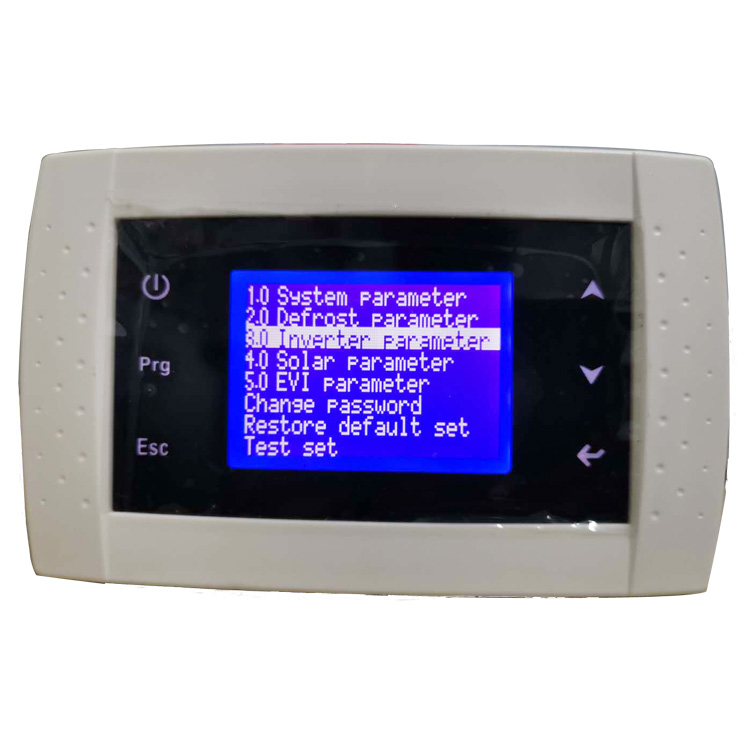

| Controller | LCD | ||
| High pressure switch | 4.2/3.6MPa | ||
| StandardFeatures Low pressure switch | 0.02/0.15MPa | ||
| Working mode | Cooling, heating, hot water, cooling+hot water, heating+hot water | ||
| Refrigerant | R410a | ||

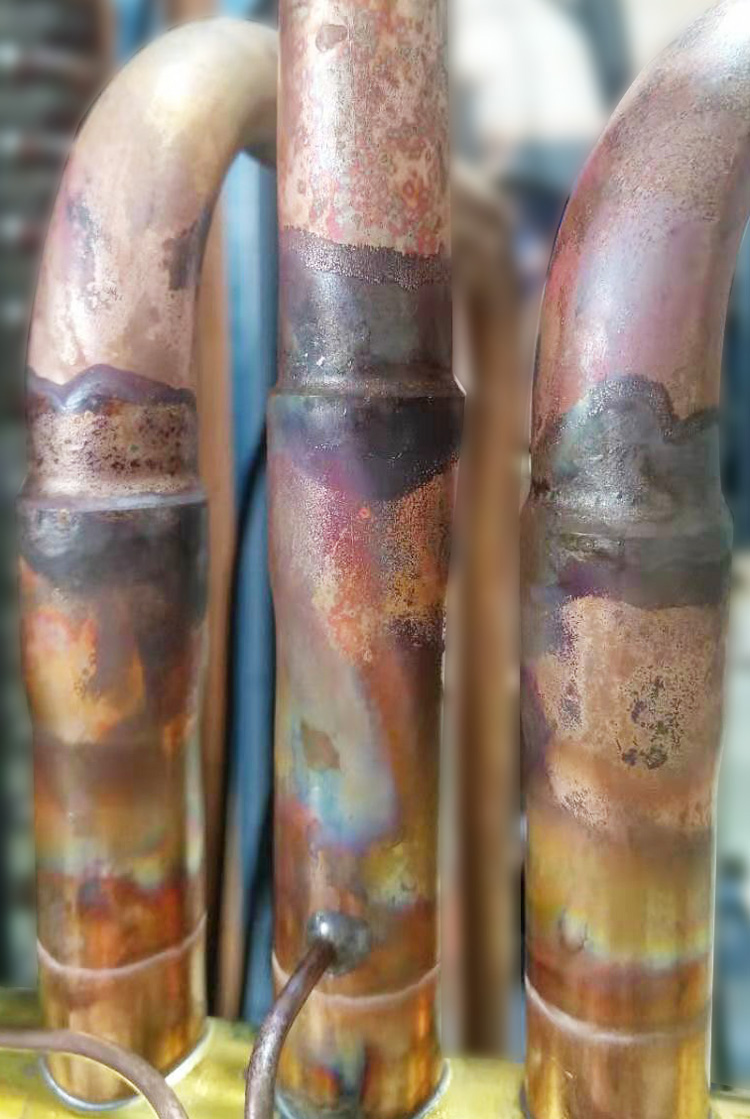

Good welding technique to ensure not eay leaking

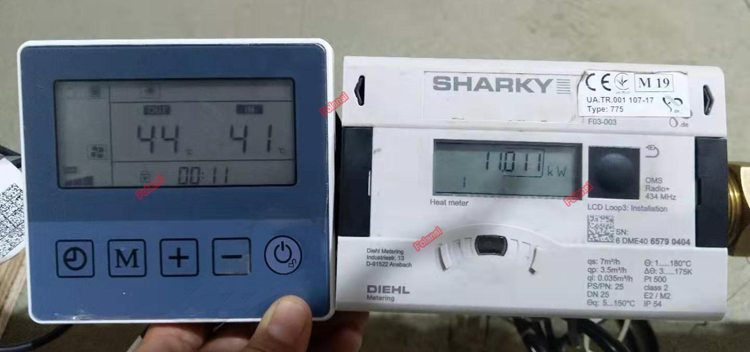

General testing every units before package, to confirm if it have a good energy efficiency and good quality ,for example model FA-03(11kw)
