Product Details:
Payment & Shipping Terms:
|
| After-sales Service Provided: | Free spare parts | Warranty: | 3 years |
|---|---|---|---|
| Power Source: | Electric | Application: | Outdoor, Hotel, Commercial |
| Installation: | Freestanding | Max. heating capacity: | 32KW |
| Rated heating power input: | 5.94 | COP: | 4.55 |
| Max. water temp: | 60 | ||
| High Light: | |||
| odel | FAD-10 | ||
| PRICE (FOB guangzhou)USD | 3198 | ||
| Technical Parameters | Max. heating capacity | kW | 32 |
| Min. heating capacity | kW | 11.3 | |
| Rated heating capacity | kW | 27 | |
| Rated heating power input | kW | 5.94 | |
| COP | 4.55 | ||
| Rated cooling capacity | kW | 24.2 | |
| Rated cooling power input | kW | 6.32 | |
| EER | 3.83 | ||
| Max. water temp. | ℃ | 60 | |
| Rated water temp. | ℃ | 55 | |
| water flow | m3/h | 4.30 | |
| pressure drop | Kpa | 34 | |
| Net weight | kg | 180 | |
| Gross weight | kg | 190 | |
| Noise | dB(A) | 58 | |
| Pipe connection | mm | 1.2" | |
| Power supply | 380V/3PH/50Hz,60hz | ||
| Net size | mm | 1300*480*1400 | |
| Package size | mm | 1380*520*1540 | |
| Standard Features | Compressor | brand | Mitsubishi |
| quantity | 1 | ||
| Condenser | plate heat exchanger | ||

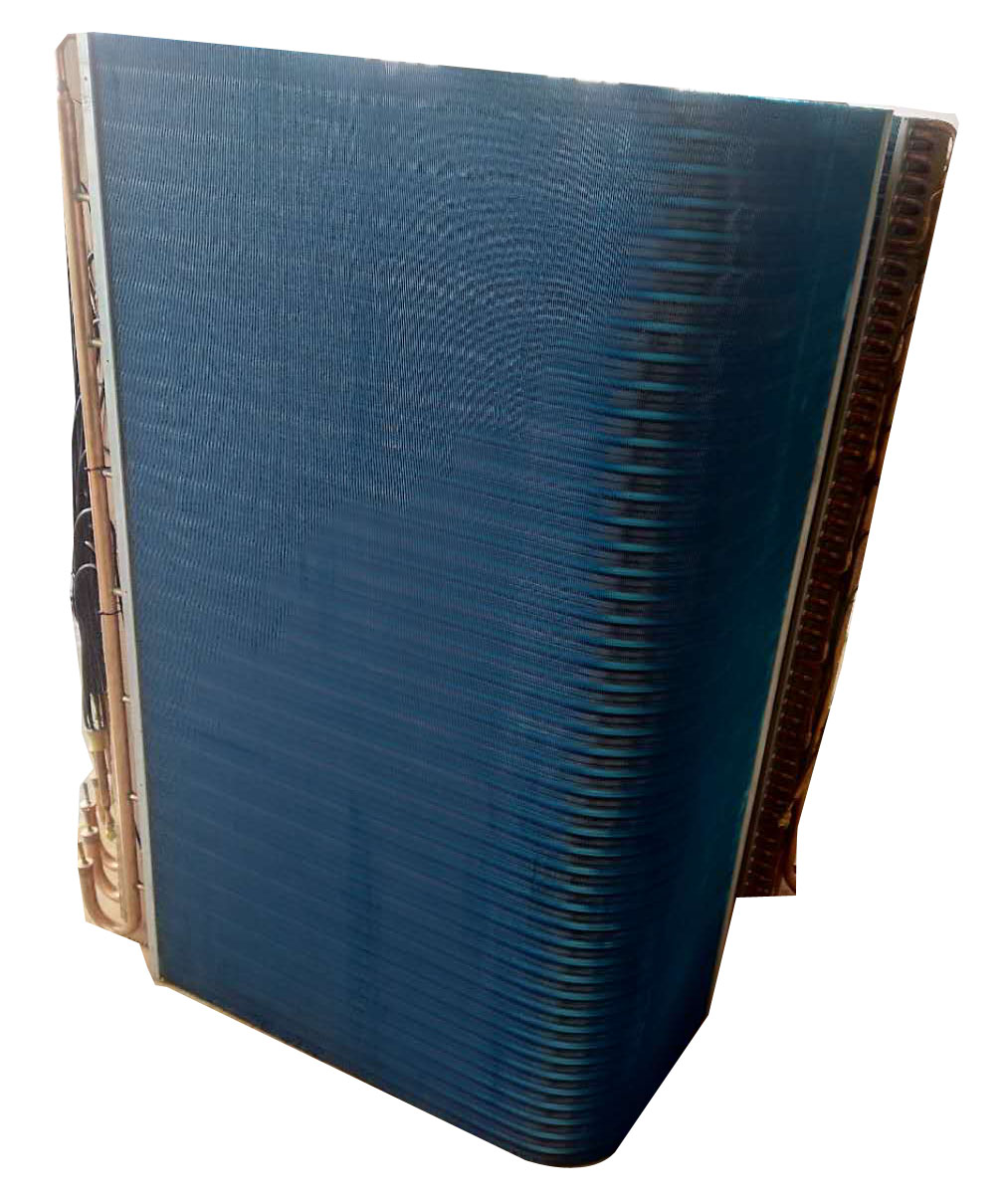

| Evaporator | Louverd&hydrophilic fin-tubes | ||

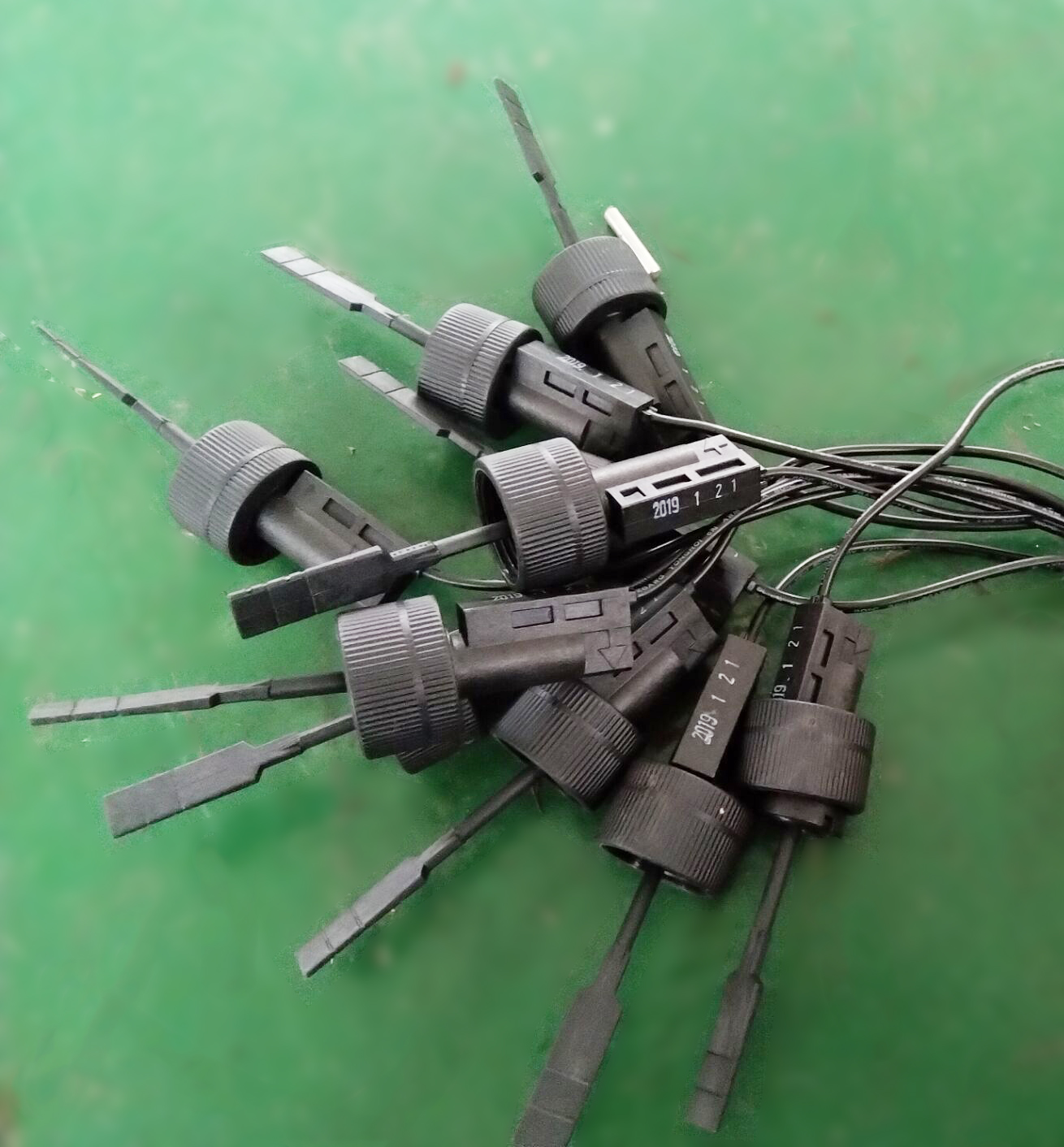

| Flow switch | Yes | ||
| Circulation pump | Built-in energy clasee A water pump | ||
| Expansion valve | Electionic expansion valve | ||
| DC Fan motor | 170W*2 | ||
| High pressure switch | 4.2/3.6MPa | ||
| Low pressure switch | 0.02/0.15MPa | ||
| Working mode | cooling, heating, hot water, cooling+hot water, heating+hot water | ||
| Refrigerant | R410A ,R32 | ||
| Energy label | Hot water 55dgree | A++ | |
| Heating 35degree | A+++ | ||
Ramrk：1. Unit working air temperature : -25℃ to 43℃
2. Test condition:
* Ambient temp: 7℃/6℃, water inlet/outlet: 30℃/35℃
** Ambient temp: 2℃/1℃, water inlet/outlet: 30℃/35℃
*** Ambient temp: 35℃, water inlet/outlet: 7℃/12℃
**** Ambient temp: 35℃, water inlet/outlet: 18℃/23℃
Structure:

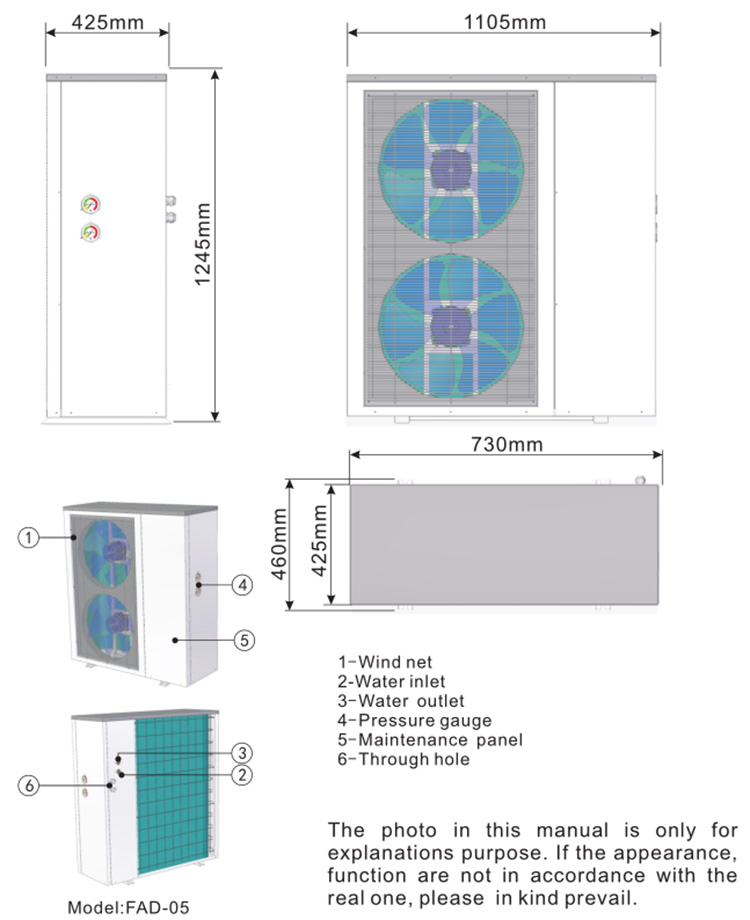

1.1 Outer Structure

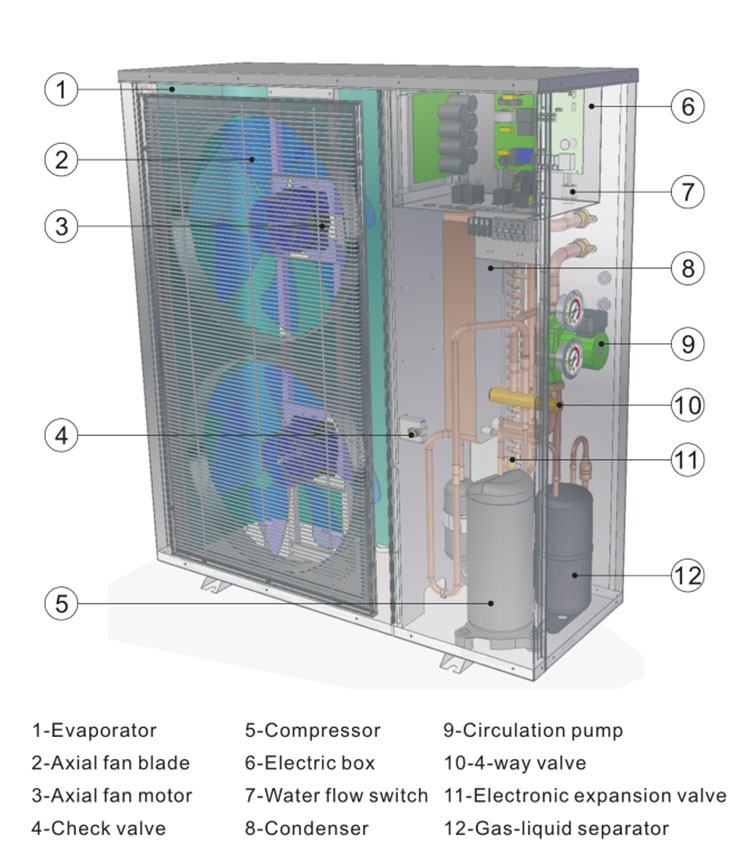

1.2 the main components name
1.3 Workshop
