Product Details:
Payment & Shipping Terms:
|
| After-sales Service Provided: | Free spare parts | Warranty: | 3 years |
|---|---|---|---|
| Power Source: | Electric | Rated heating capacity: | 20KW |
| Max. water temp: | 60℃ | Net weight: | 168KG |
| High Light: | |||
1,Working temp.:-25℃~43℃
2,Test condition:heating mode Ambient temp.:7℃/6℃,inlet/ outlet water temp.:30℃/35℃;
cooling mode Ambient temp.:35℃/24℃,inlet/ outlet water temp.:12℃/7℃
1. Unit working temperature : -25℃ to 43℃
2. Test condition:
* Ambient temp: 7℃/6℃, water inlet/outlet: 30℃/35℃
** Ambient temp: 2℃/1℃, water inlet/outlet: 30℃/35℃
*** Ambient temp: 35℃, water inlet/outlet: 7℃/12℃
**** Ambient temp: 35℃, water inlet/outlet: 18℃/23℃
3. Hot water supply: the volume of hot water heated from 15℃ to 55℃ at ambient temp 15℃.
4. The above is the basic configuration. Water pump is included in.
| DC Inverter Air to Water heat pump( wifi controller) | |||
| Model | FAD-06 | ||
| Technical Parameters | Max. heating capacity | kW | 23 |
| Min. heating capacity | kW | 8.1 | |
| Rated heating capacity | kW | 20 | |
| Rated heating power input | kW | 4.26 | |
| COP | 4.69 | ||
| Rated cooling capacity | kW | 18 | |
| Rated cooling power input | kW | 4.81 | |
| EER | 3.74 | ||
| Max. water temp. | ℃ | 60 | |
| Rated water temp. | ℃ | 50 | |
| water flow | m3/h | 3.10 | |
| pressure drop | Kpa | 30 | |
| Net weight | kg | 168 | |
| Gross weight | kg | 186 | |
| Noise | dB(A) | 58 | |
| Pipe connection | mm | 1.2" | |
| Power supply | 380V/3PH/50Hz,60hz | ||
| Net size | mm | 1110*450*1250 | |
| Package size | mm | 1200*520*1390 | |

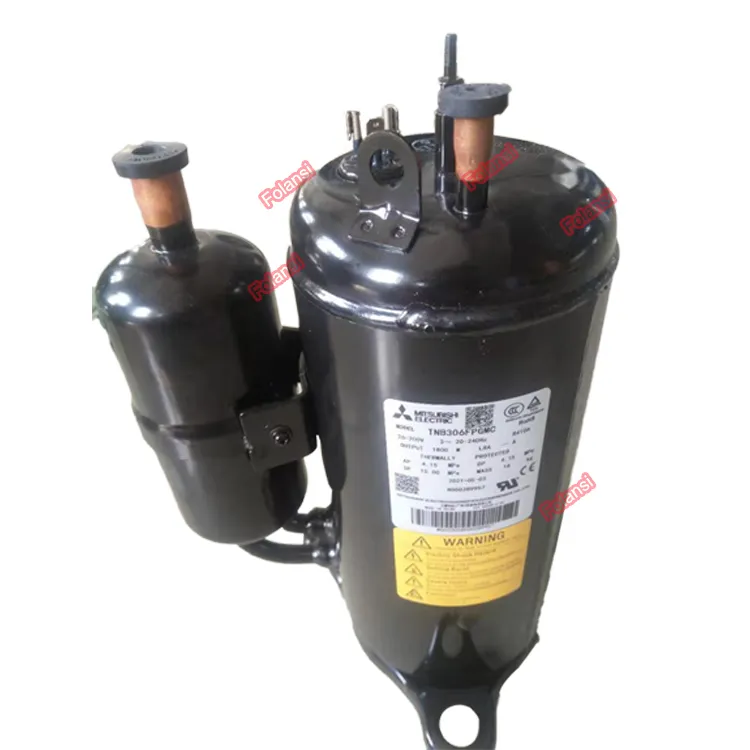

| Standard Features | Compressor | brand | Mitsubishi |
| quantity | 1 | ||

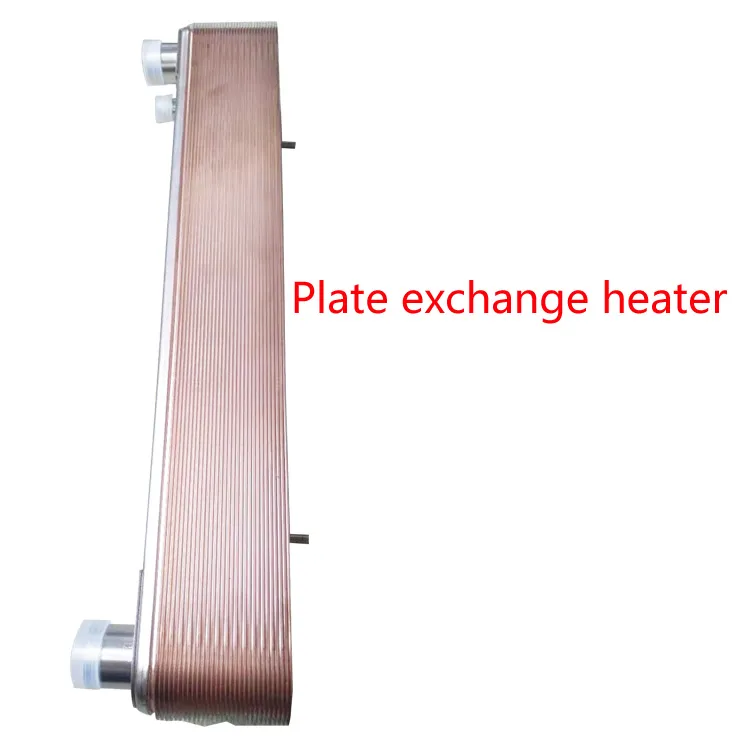

| Condenser | plate heat exchanger | ||
| Evaporator | Louverd&hydrophilic fin-tubes | ||
| Flow switch | Yes | ||
| Circulation pump | Built-in energy clasee A water pump | ||
| Expansion valve | Electionic expansion valve | ||

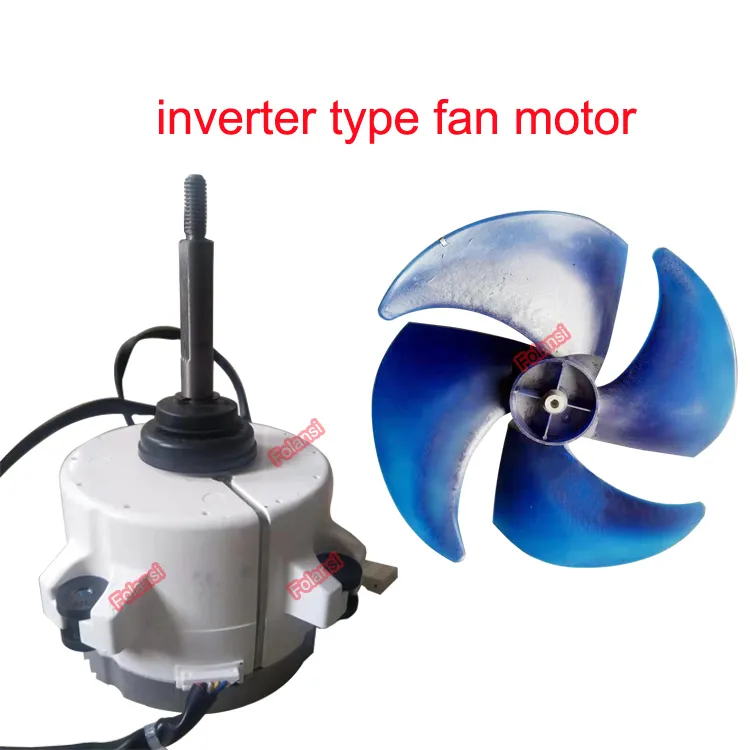

| DC Fan motor | 80W*2 | ||
| High pressure switch | 4.2/3.6MPa | ||
| Low pressure switch | 0.02/0.15MPa | ||
| Working mode | cooling, heating, hot water, cooling+hot water, heating+hot water | ||
| Refrigerant | R410A | ||
| Energy label | Hot water 55dgree | A++ | |
| Heating 35degree | A++ | ||
1,Working temp.:-25℃~43℃
2,Test condition:heating mode Ambient temp.:7℃/6℃,inlet/ outlet water temp.:30℃/35℃;
cooling mode Ambient temp.:35℃/24℃,inlet/ outlet water temp.:12℃/7℃

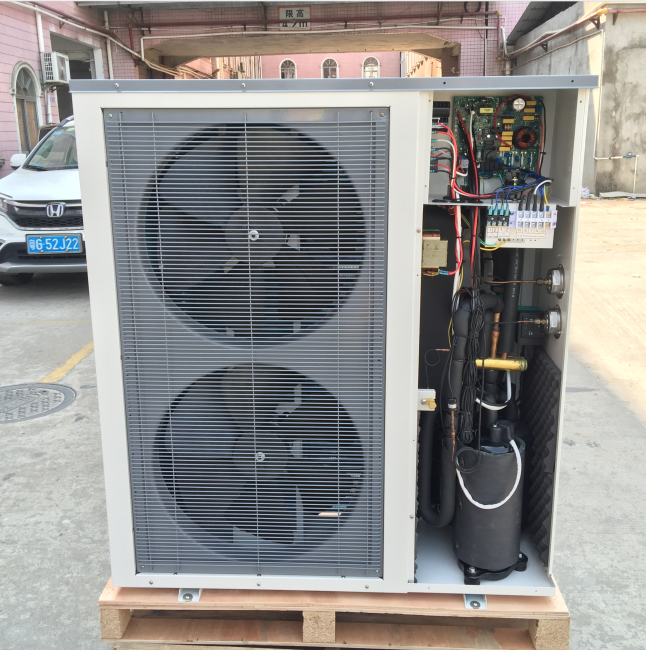

KEY Components:
-------------------------------------------------
Functions:
-----------------------------------------------
1) Base frame and external panels made of galvanized powder coated steel
2) Extremely compact structure and good demountability
3) Reliable compressor with R410A refrigerant
4) Galvanomagnetic reverse valve

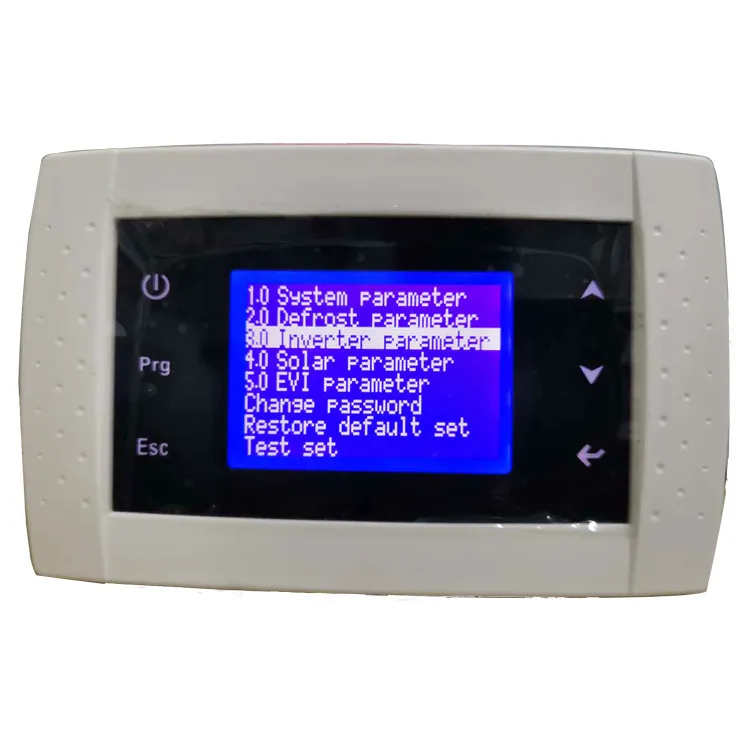

5) Intelligent controller and adjustment by quick mind microprocessor with possibility of remote control
6) Water exchanger equipped with high efficiency tube in shell heat exchanger
7) Air exchanger (fins-coil) with hydrophilic coating
8) Automatic defrosting function included
9) Thermostatic heating element for evaporator anti-frosting protection
10) Thermostatic or Electric expansion valve
11) General testing and operational test carried out for every unit before package in the factory
12) Stable water flow switch built-in

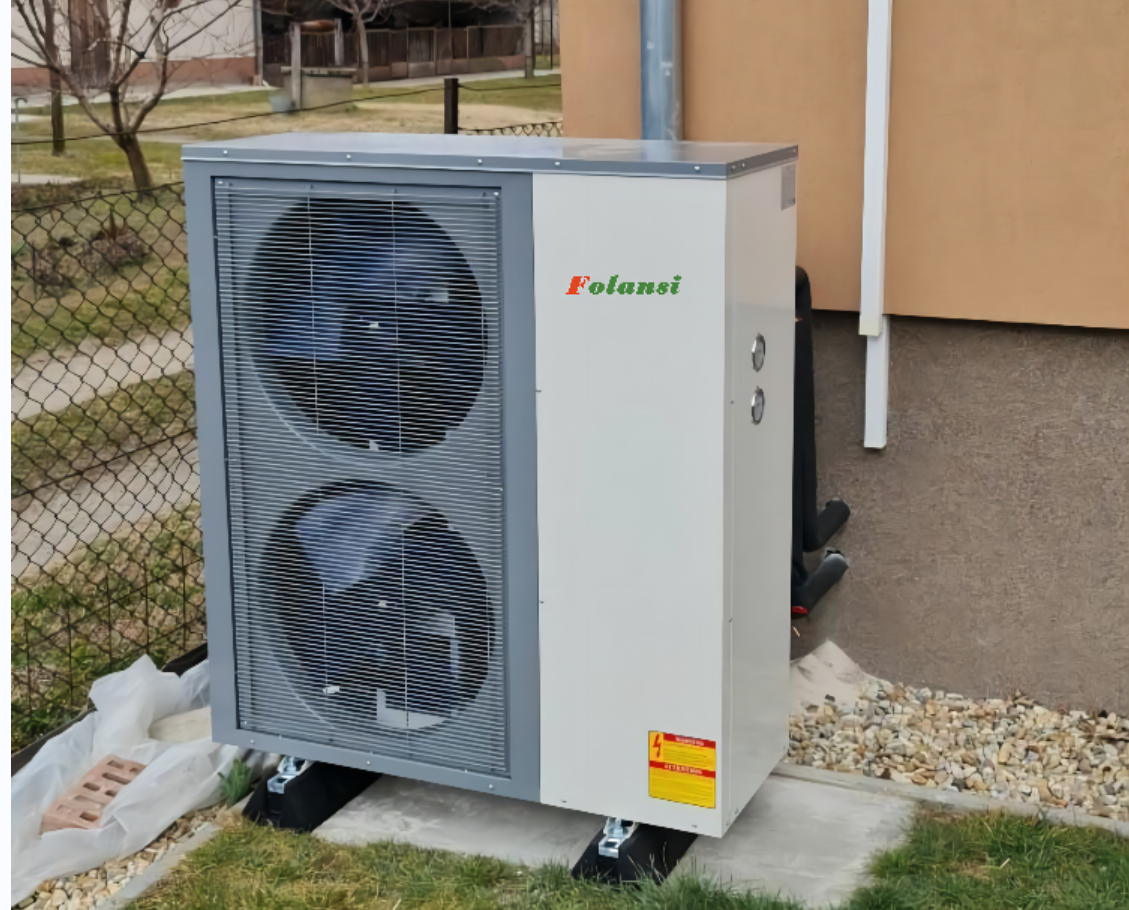

Simple Projects:
-----------------------------------------------
