Product Details:
Payment & Shipping Terms:
|
| After-sales Service Provided: | Free spare parts | Warranty: | 2 years |
|---|---|---|---|
| Power Source: | Electric | App-Controlled: | Yes |
| Model Number: | FAD-04 | Product name: | Inverter Heat Pump Monoblock(4 Hp) |
| Function: | House Heating Cooling Hot Water | Heating capacity: | 16.8KW |
| Max Hot Water Temperature: | 60C | Power supply: | 220-240/1/50 (V/Ph/Hz)/380-415/3/50(V/Ph/Hz)) |
| High Light: | |||

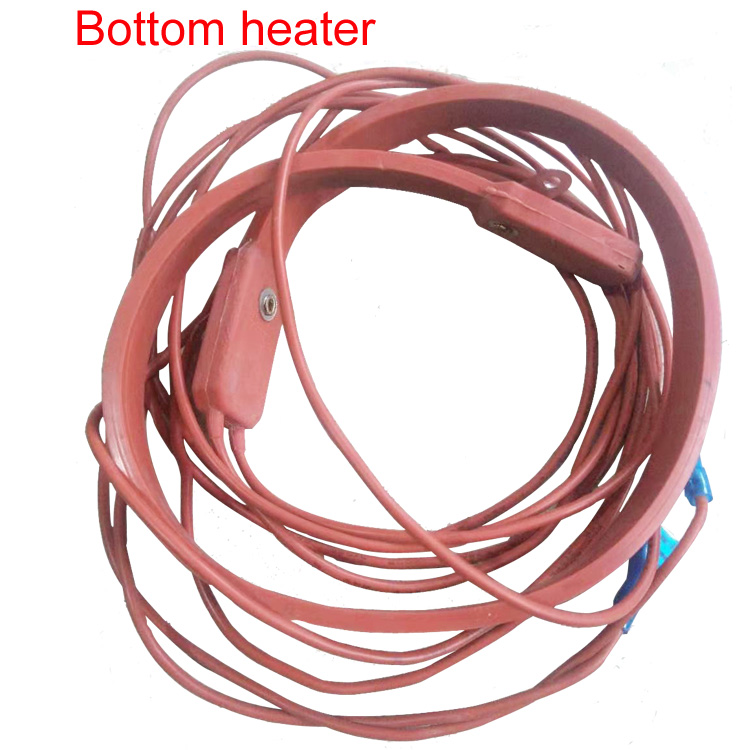

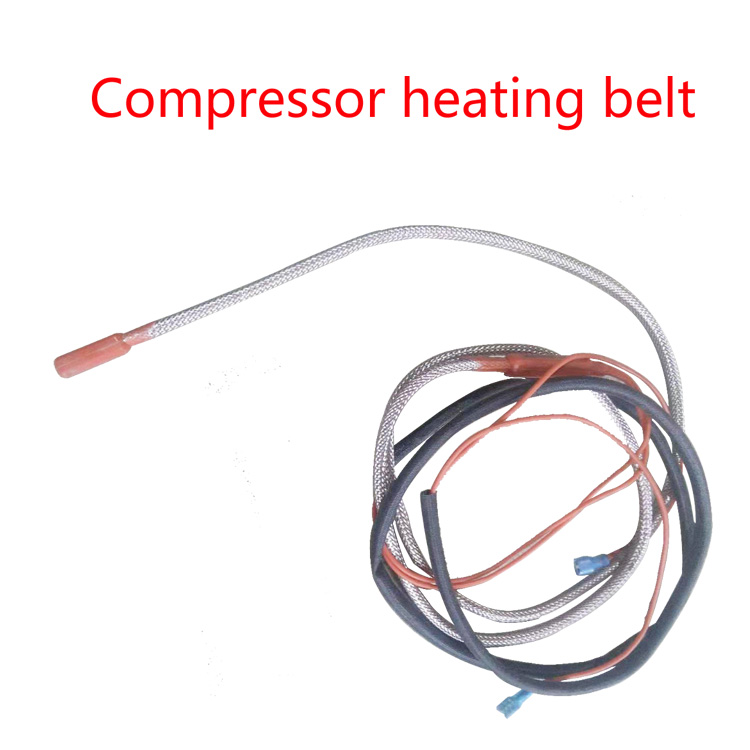

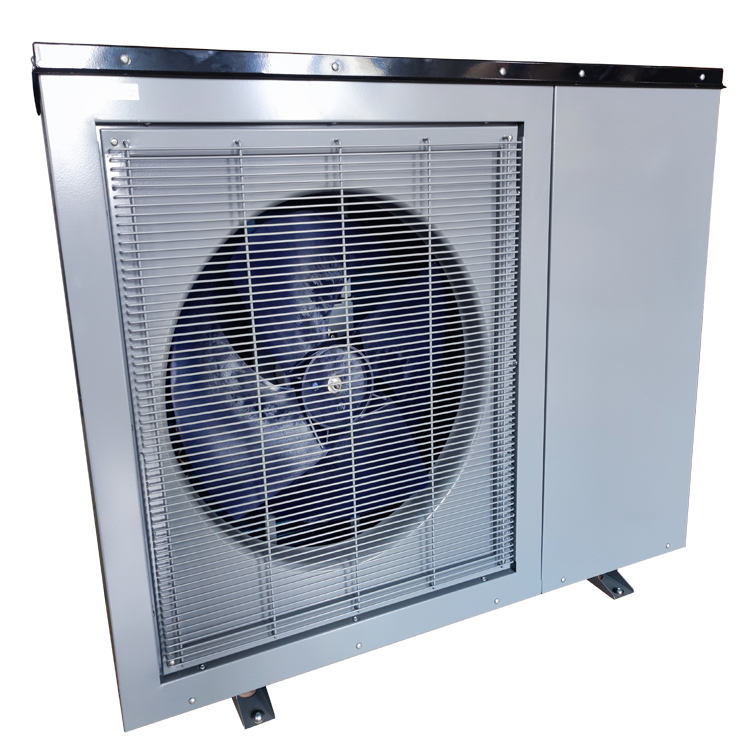

Air Source DC Inverter Heat Pump WIFI control DHW Heating Cooling 16.8kw Monoblock type inbuilt circulating water pump add bottom heater and compressor heating belt ,can connect electric heater and three-way valve
1,Working temp.:-25℃~43℃
2,Test condition:heating mode Ambient temp.:7℃/6℃,inlet/ outlet water temp.:30℃/35℃;
cooling mode Ambient temp.:35℃/24℃,inlet/ outlet water temp.:12℃/7℃
| DC Inverter Air to Water heat pump( wifi controller) | |||
| Model | FAD-04 | ||
| Technical Parameters | Max. heating capacity | kW | 16.8 |
| Min. heating capacity | kW | 5.8 | |
| Rated heating capacity | kW | 14 | |
| Rated heating power input | kW | 3.05 | |
| COP | 4.59 | ||
| Rated cooling capacity | kW | 13.8 | |
| Rated cooling power input | kW | 3.25 | |
| EER | 4.25 | ||
| Max. water temp. | ℃ | 60 | |
| Rated water temp. | ℃ | 55 | |
| water flow | m3/h | 2.20 | |
| pressure drop | Kpa | 26 | |
| Net weight | kg | 105 | |
| Gross weight | kg | 120 | |
| Noise | dB(A) | 50 | |
| Pipe connection | mm | 1" | |
| Power supply | 220V/1PH/50Hz/60HZ | ||
| Net size | mm | 1080*430*940 | |
| Package size | mm | 1180*500*1080 | |

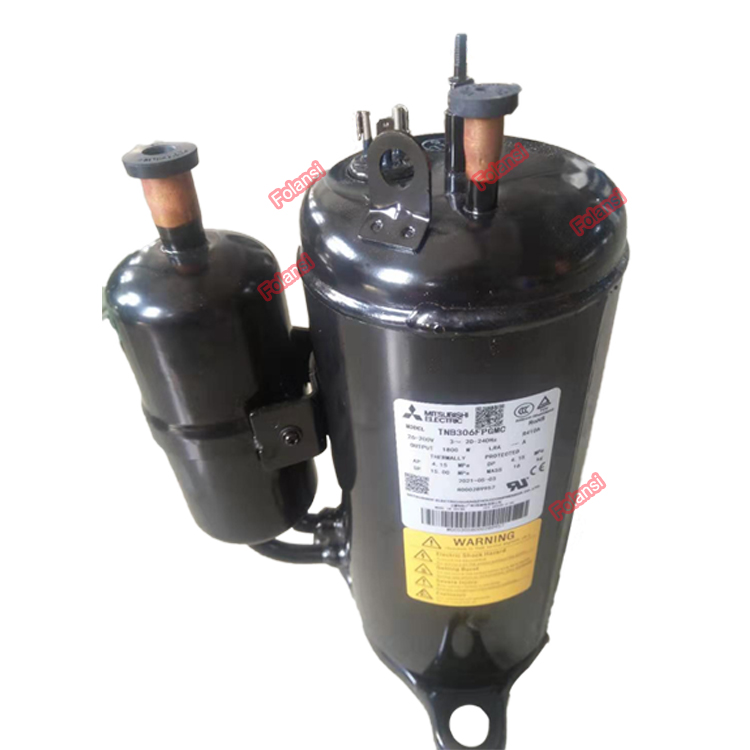

| Standard Features | Compressor | brand | Mitsubishi |
| quantity | 1 | ||

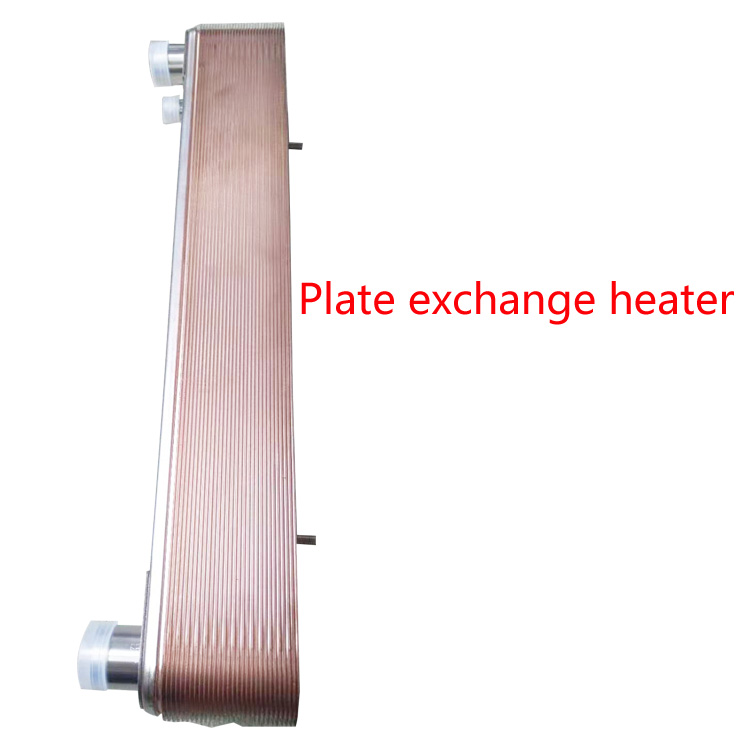

| Condenser | plate heat exchanger | ||
| Evaporator | Louverd&hydrophilic fin-tubes | ||
| Flow switch | Yes | ||

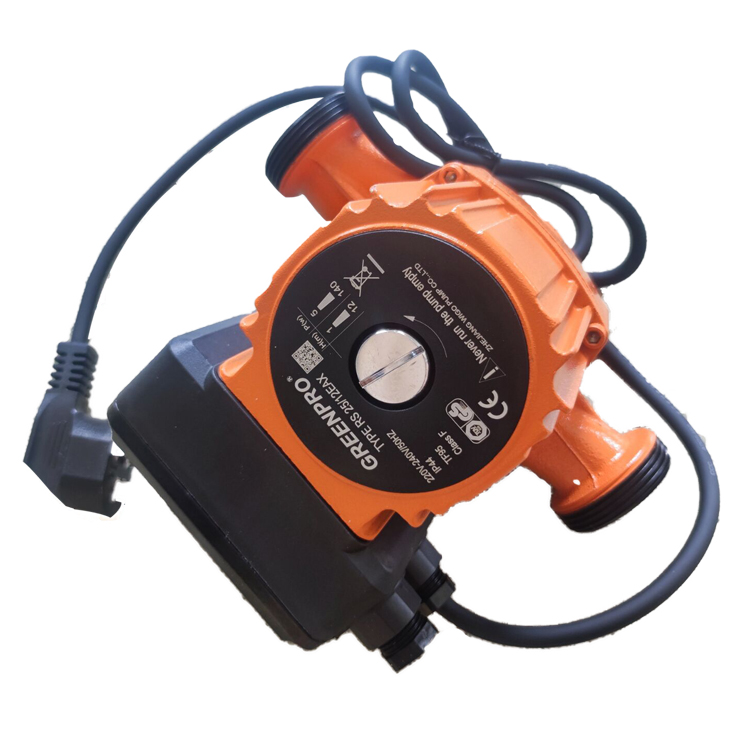

| Circulation pump | Built-in energy clasee A water pump | ||

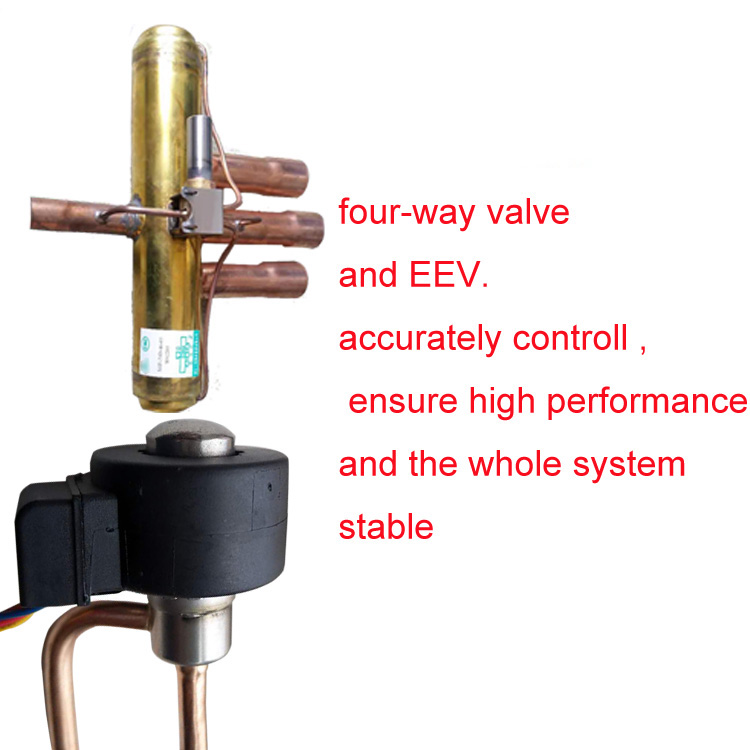

| Expansion valve | Electionic expansion valve | ||

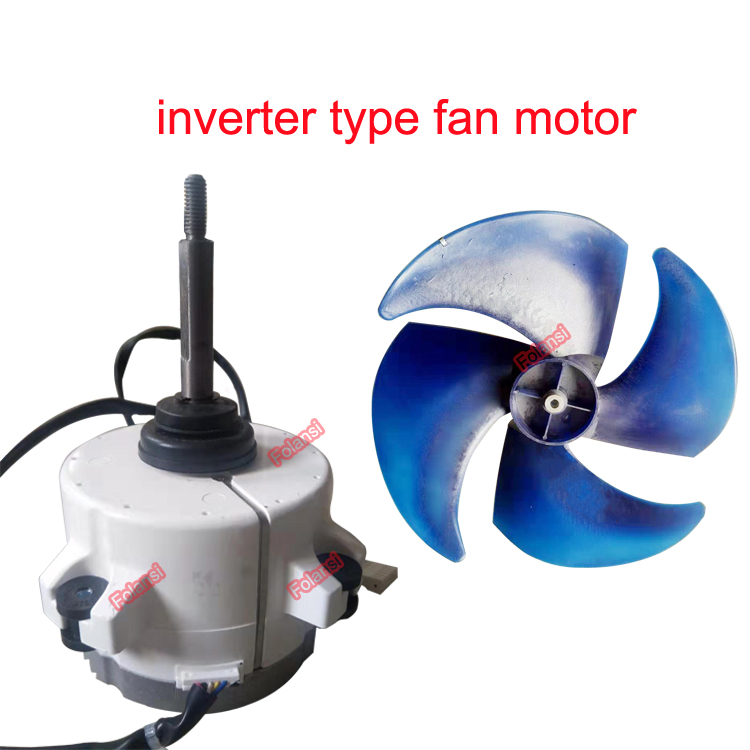

| DC Fan motor | 170W | ||
| High pressure switch | 4.2/3.6MPa | ||
| Low pressure switch | 0.02/0.15MPa | ||
| Working mode | cooling, heating, hot water, cooling+hot water, heating+hot water | ||
| Refrigerant | R410A | ||
| Energy label | Hot water 55dgree | A++ | |
| Heating 35degree | A++ | ||

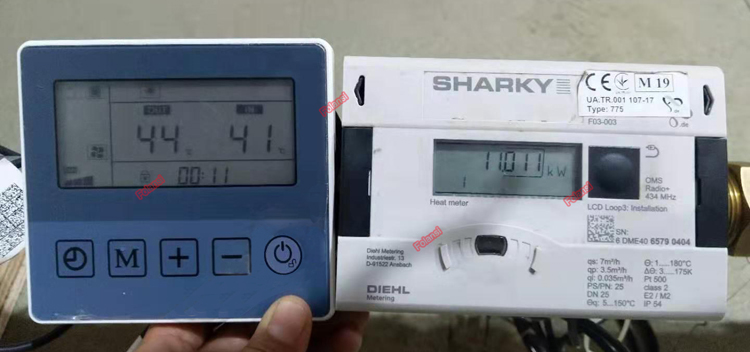

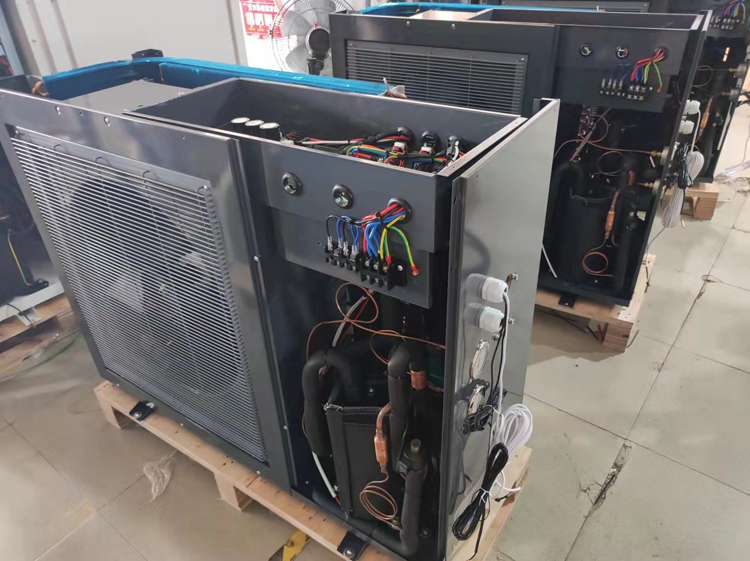

before package,we test everyone machines to confirm if its good energy efficiency ,whether enough heating capacity for example model SA-03(11kw) testing

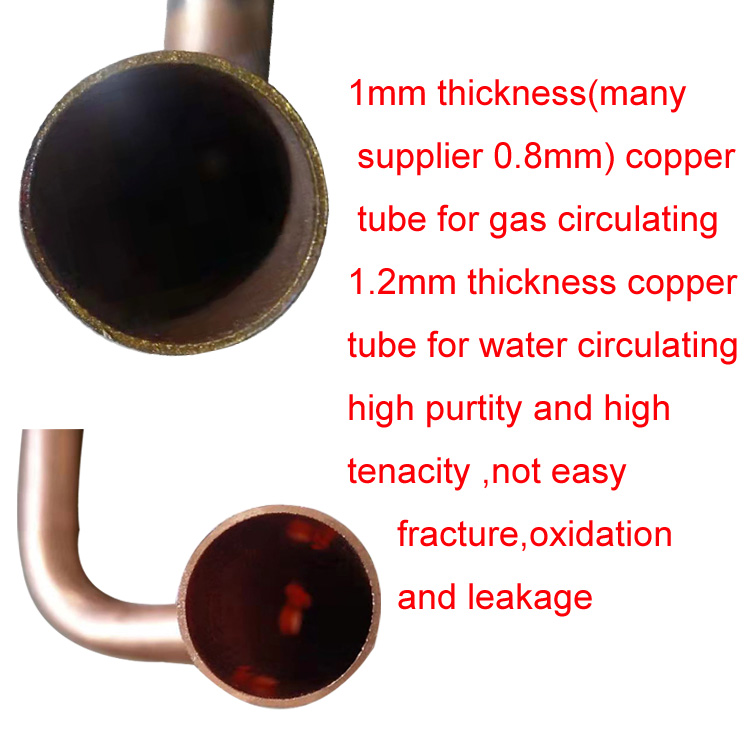

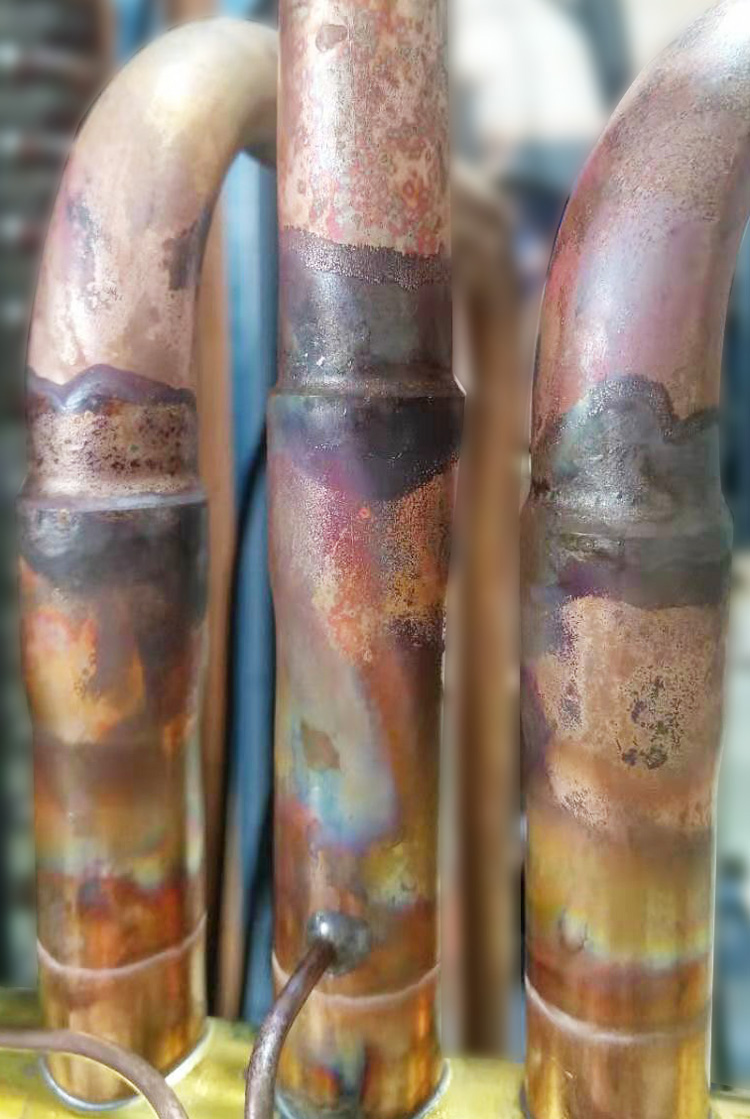

Good welding technique to ensure not eay leaking
Specification
item | value |
After-sales Service Provided | Free spare parts |
Warranty | 2 years |
Application | Commercial, Household |
Power Source | Electric |
App-Controlled | Yes |
Private Mold | Yes |
Type | Air to air Heat Pump |
Storage / Tankless | Storage |
Place of Origin | China |
Brand Name | Folansi |
Model Number | FAD-04 |
Product name | Inverter Heat Pump Monoblock(4 Hp) |
Function | House Heating Cooling Hot Water |
Refrigerant | R410A |
Heating capacity | 16.8KW |
Cooling capacity | 9.1kW |
Heat exchanger | Plate Heat Exchanger |
Compressor | Inverter Compressor |
Max Hot Water Temperature | 60C |
Water pump | Inverter Built-in |
Power supply | 220-240/1/50 (V/Ph/Hz)/380-415/3/50(V/Ph/Hz)) |
