Product Details:
Payment & Shipping Terms:
|
| After-sales Service Provided: | Free spare parts | Warranty: | 3 years |
|---|---|---|---|
| Application: | Commercial | Use: | Domestic use and commercial use |
| Model Number: | FAC-10 | Rated heating power: | 8.97kW |
| Model Number: | FAC-10 | Rated heating current: | 17A |
| Power: | 380V~415/3N/50HzV/Ph/Hz | ||
| High Light: | |||
Commercial air water heat pump for spa 8.97KW integrated air hot water heat pump
| Model | heatpump | FAC-03 | FAC-05 | FAC-10 | |||
| Unit functions | Rated heating | Heating capacity | kW | 9.2 | 14.87 | 29.75 | |
| Btu,h | 31399 | 50751 | 101536 | ||||
| Rated power | kW | 3.16 | 4.48 | 8.97 | |||
| Rated current | A | 12.9 | 8.5 | 17 | |||
| Rated cooling | Cooling capacity | kW | 7.48 | 12.09 | 24.19 | ||
| Btu,h | 25529 | 41263 | 82560 | ||||
| Rated power | kW | 3.23 | 4.58 | 9.15 | |||
| Rated current | A | 13.2 | 8.7 | 17.4 | |||
| Max ruuning current | A | 19.2 | 13.9 | 27.8 | |||
| Power | V Ph Hz | 220V~240,1N,50Hz or 380V~415,3N,50Hz | 380V~415,3N,50Hz | ||||
| Noise | dB(A) | 50 | 52 | 58 | |||
| Size | L(A) | mm | 834 | 834 | 1450 | ||
| w(B) | mm | 460 | 460 | 780 | |||
| H(C) | mm | 1330 | 1330 | 1050 | |||
| Weight | kg | 120 | 155 | 280 | |||
| Operating control | Precision temp precision | ℃ | ±1℃ | ||||
| Operation range | ℃ | — 20℃~45℃ | |||||
| Operation panel | Type | LCD | |||||
| Main functions | Operating mode,temperature,operating condition, timing | ||||||
| Throttling | Electronic expansion valves,thermal expansion valves | ||||||
| The outlet temp | ℃ | 55℃ | |||||
| Refrigerate | Type | R410A | |||||
| Compressor | Type | Copeland, panasonic,hitachi | |||||
| Air side heat exchange | Type | Finned heat exchange | |||||
| Qty | pc | 1 | 1 | 2 | |||
| Fan type | Type | Axial big twist angle fan | |||||
| Motor power | kw | 0.1 | 0.3 | 0.6 | |||
| Water side heat exchange | Type | tube in shell heat exchanger,plate heat exchanger | |||||
| Water flow(summer) | m3,h | 1.29 | 2.08 | 4.16 | |||
| Water flow(winter) | m3,h | 1.58 | 2.56 | 5.12 | |||
| Water pressure down | kpa | 27 | 30 | 36 | |||
| Connection dimension | Inch | 3,4 | 1 | 1-1,4 | |||
| Water side max working pressure | KPA | 1000 | |||||
| (FOB GUANGZHOU) | USD | 1028 | 1447 | 2872 | |||
Company Information
Our Services

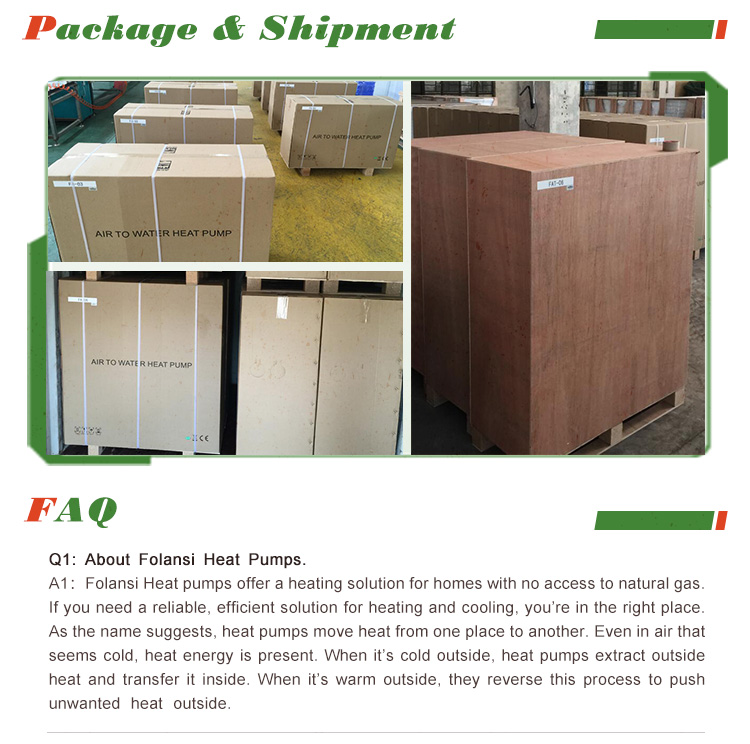

Packaging & Shipping
